Yamaha MG10XUF 10-Channel Mixer w/Faders
Yamaha MG10XUF 10-Channel Mixer w/Faders
Couldn't load pickup availability
We can contact you when this item is available:
Yamaha MG10XUF 10‑Channel Mixer w/Faders
A professional-grade analog mixer that delivers compact versatility with premium features—perfect for studio recording, live sound, installations, DJ setups, and home production.
Design & Build
-
Housed in a powder-coated steel chassis, the MG10XUF is built to endure the rigors of gigging and daily use.
-

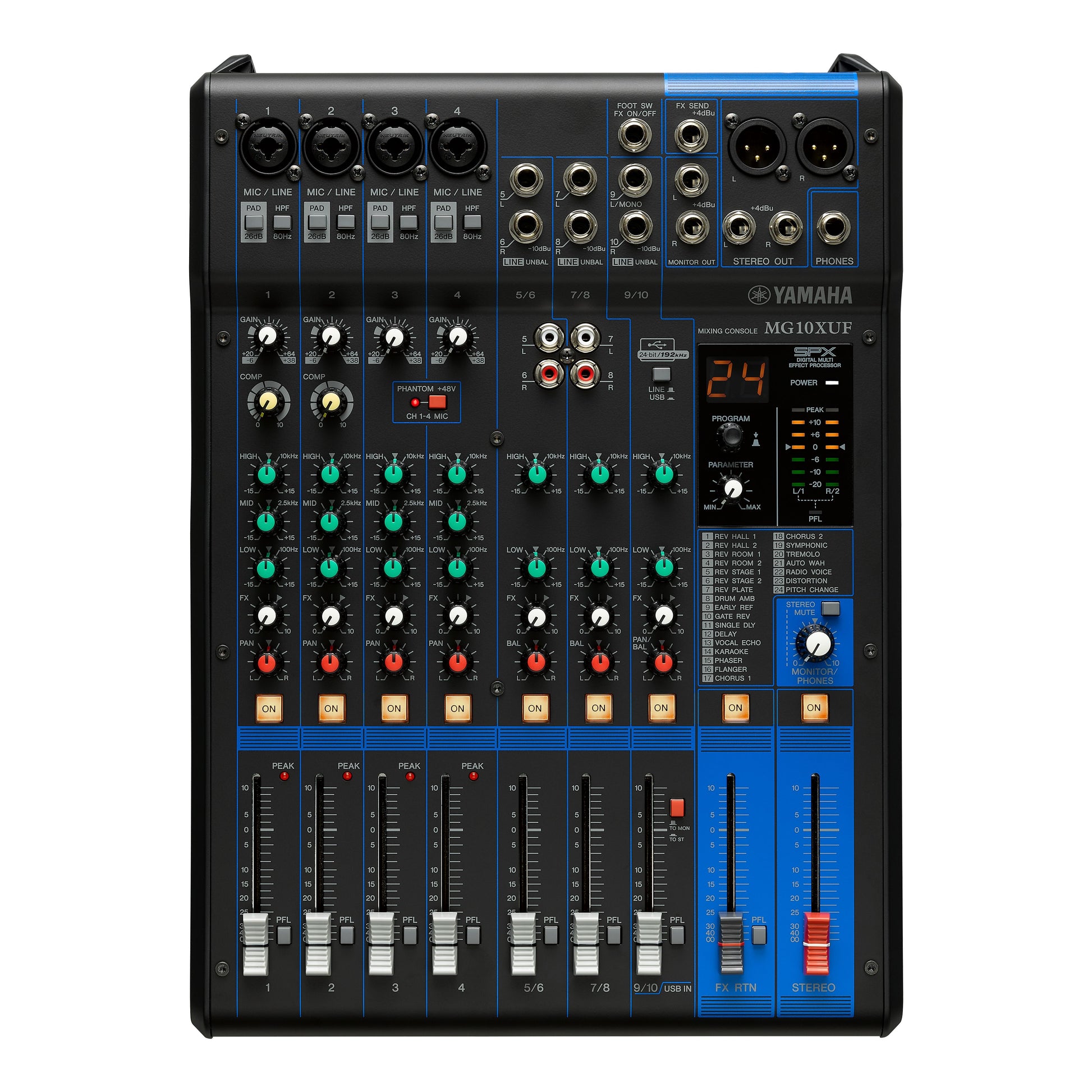

Features large linear faders for smooth, precise levels adjustment—ideal for dimly lit environments.
Input & Output Configuration
-
10 input channels: Includes 4 mono (mic/line) and 3 stereo inputs, plus a stereo bus, auxiliary/FX send, mono monitor out, and headphones.
-

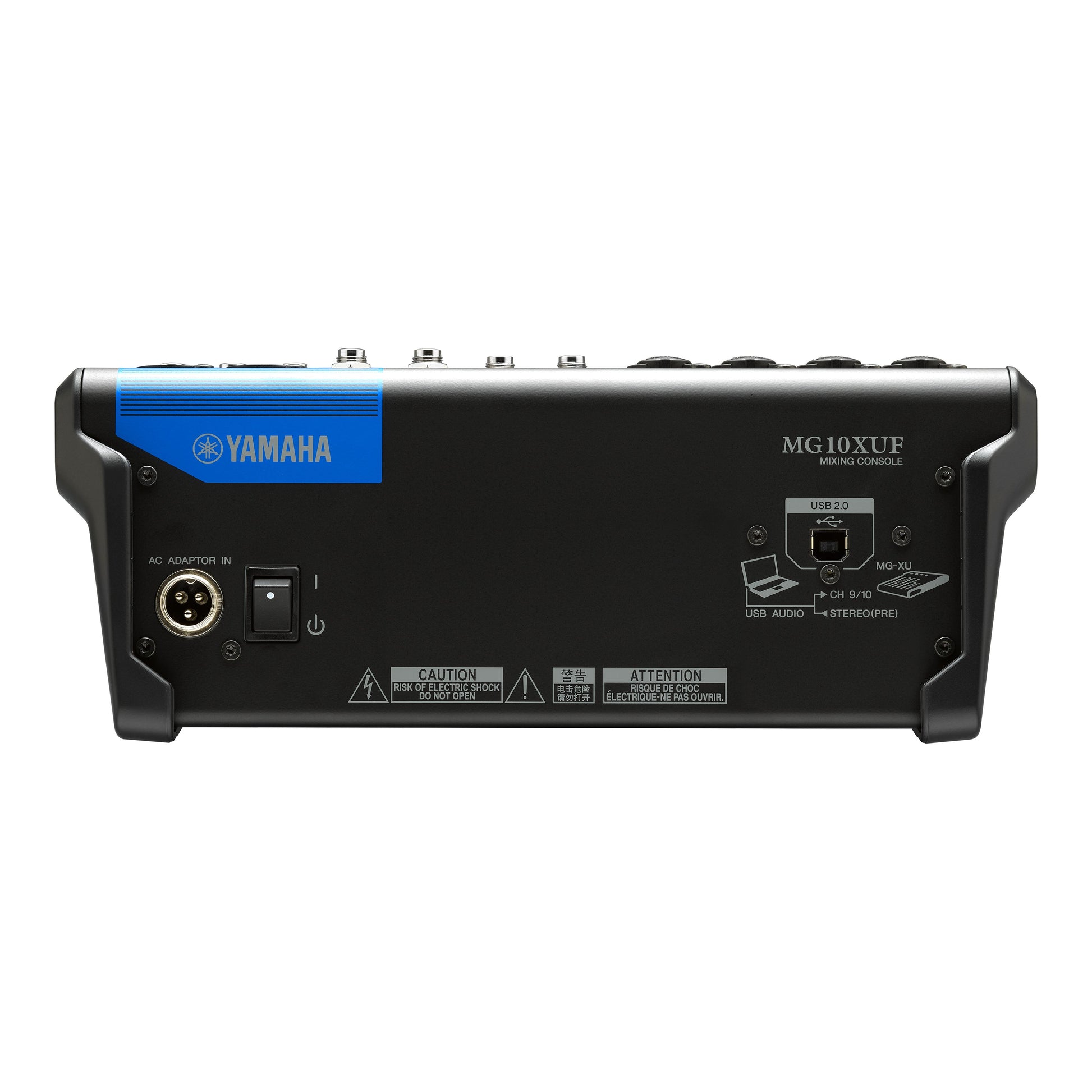

Equipped with balanced XLR stereo outputs, ensuring clean, professional signal routing.
-
Offers +48 V phantom power on all mic channels, enabling seamless use of condenser microphones.
Sound Quality & Control
-
Powered by Yamaha’s acclaimed Class‑A "D‑PRE" mic preamps featuring inverted Darlington circuitry—delivering rich bass, clear mids, and smooth highs with low distortion.
-
Each mono channel includes a 1‑knob compressor for quick dynamics control, alongside a 3‑band EQ, PAD switch, and high‑pass filter.
-
Onboard SPX digital effects offer 24 high-quality programs, including reverb and delay, with parameter adjustment and optional foot-switch control.
Digital Connectivity & Software
-
Functions as a 2-in/2-out USB 2.0 audio interface with up to 24‑bit/192 kHz resolution via USB Class 2.0—ideal for seamless PC, Mac, or iPad use (via Camera Connection Kit).
-
Includes Cubase AI DAW software for desktops and support for Cubasis LE or MG Rec & Play apps on iPad/iPhone.
Specifications
Spec | Detail |
---|---|
Dimensions (W×H×D) | 275 × 110 × 390 mm (~10.8" × 4.3" × 15.4") |
Weight | Approx. 3.3 kg (7.3 lbs) |
Power Consumption | Around 22.9 W |
The Yamaha MG10XUF stands out as a compact yet powerful mixing solution. It combines rugged construction with high-end audio performance—Class-A preamps, versatile per-channel controls, pro-grade effects, and digital connectivity. Whether you're recording in the studio, running live sound, streaming, or hooking into a DAW or iPad, it delivers polished results with minimal fuss.
