XVive AT-3 Portable Audio Tester Ultra Duel Unit

A full-featured, upgraded, split-design professional audio tester based on the AT-2, the AT-3 offers enhanced battery life, and a range of powerful functions. Having separate units for male and female connections allows you to test both ends of long cable’s simultaneously while keeping them in place very handy for installations.

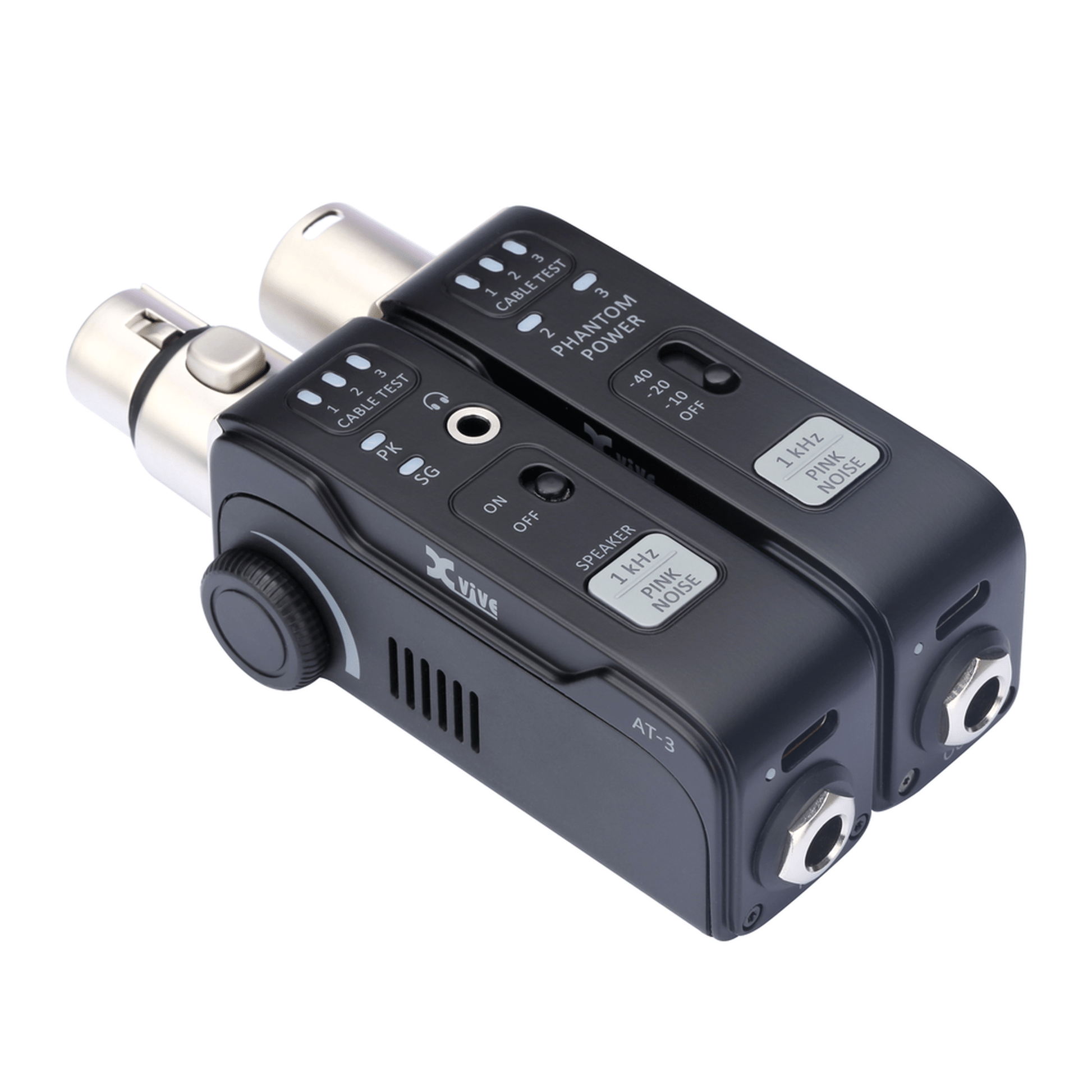

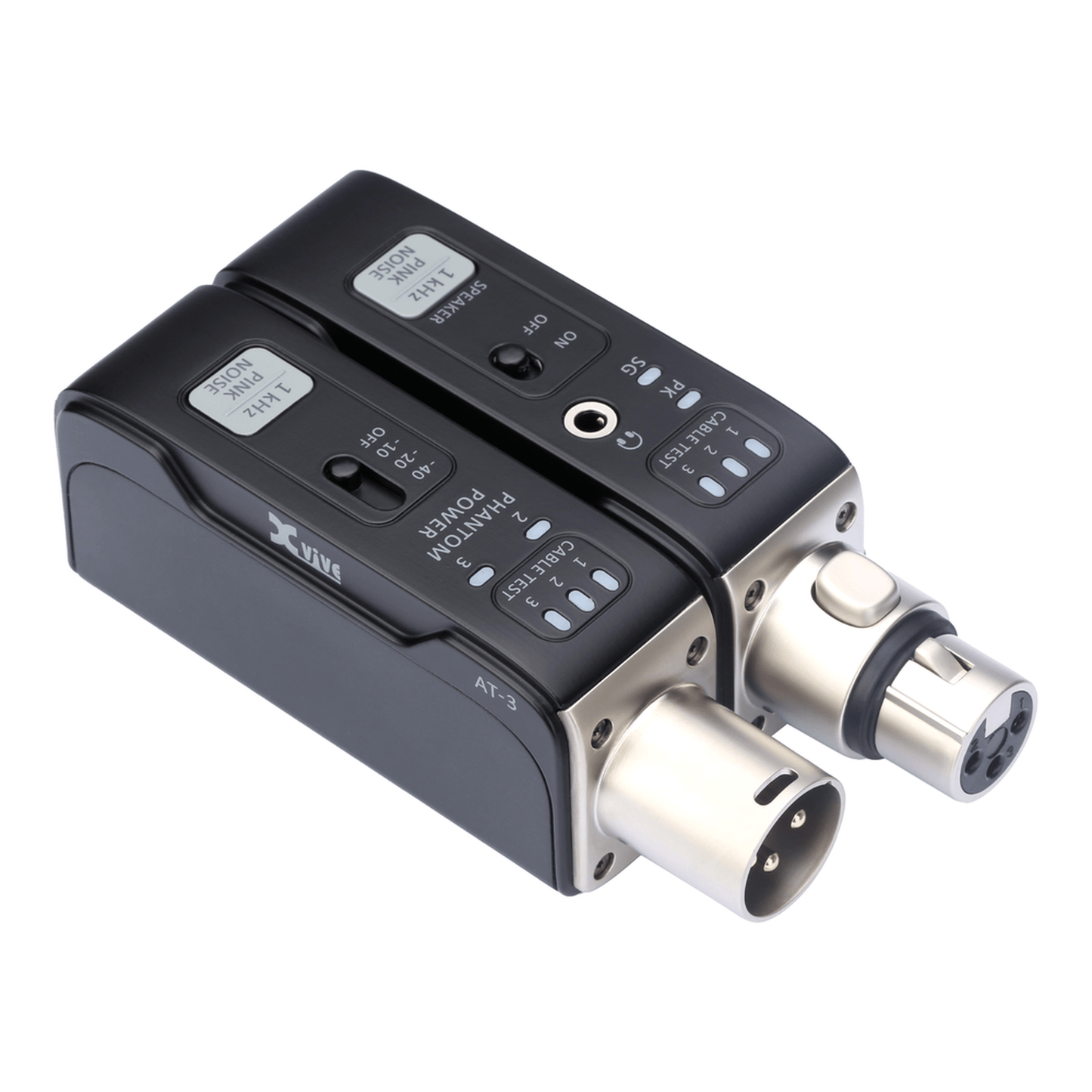

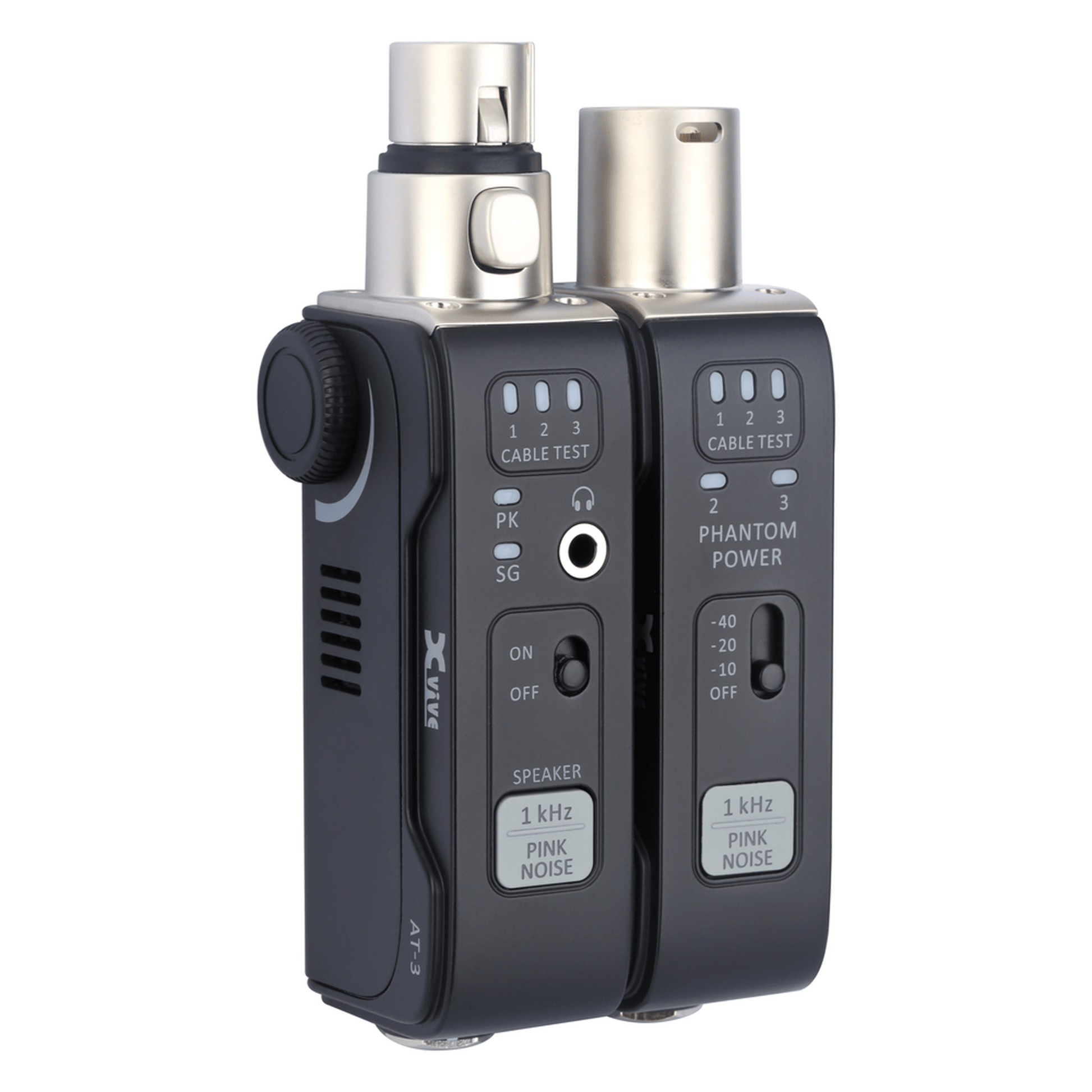

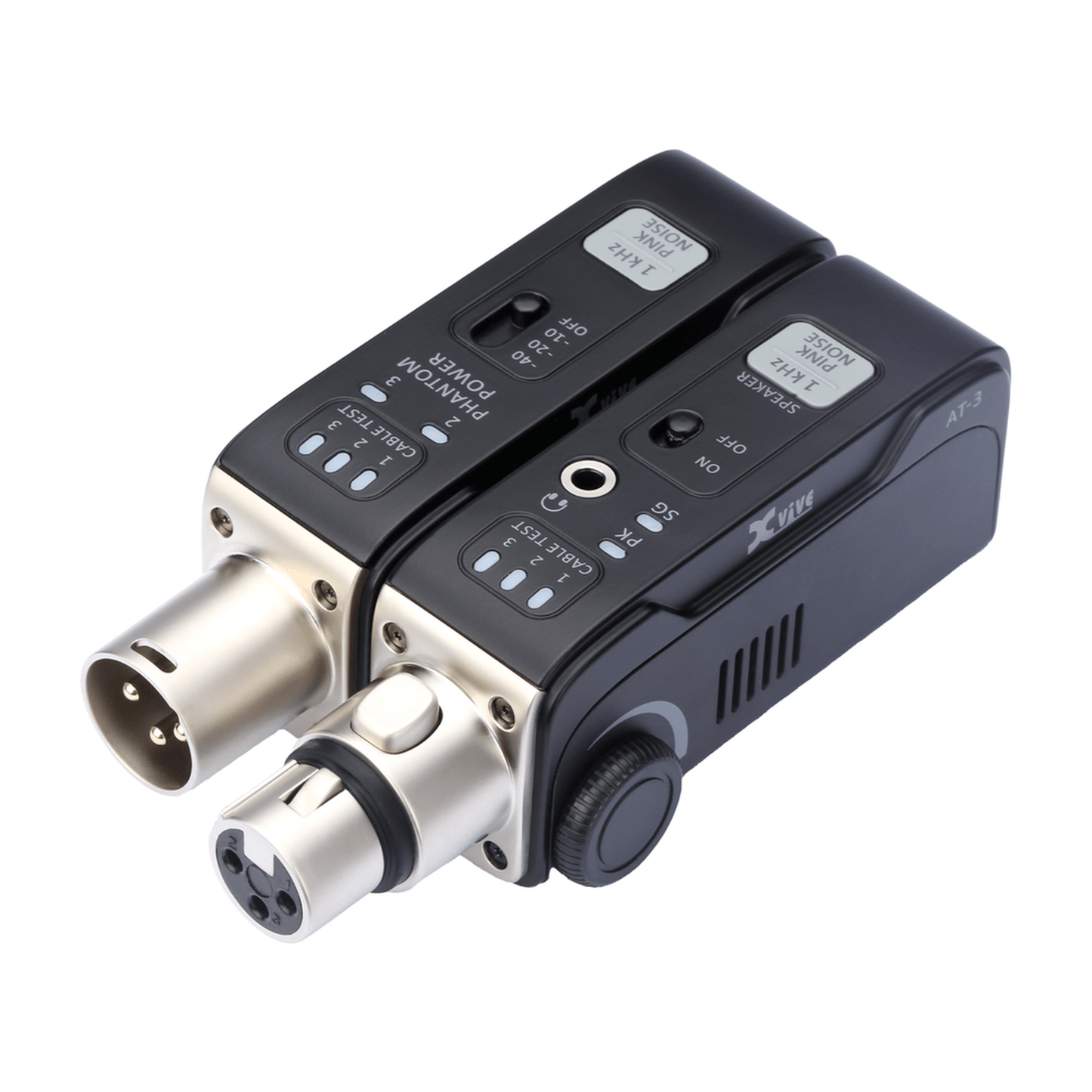

The AT-3 is XVIVE’s ultimate audio testing tool, consisting of a female XLR unit and a male XLR unit. Each unit can operate independently, providing maximum flexibility for a variety of testing applications. The male XLR unit features signal generation (1 kHz tone or pink noise), output via both XLR and 1/4 connectors, and phantom power detection. The female XLR unit offers XLR input Level metering, signal generation (output to built-in speaker and 1/8 headphone jack), and audio input monitoring.

The upgraded cable testing function supports split-unit long-distance testing of XLR or OMX cable’s (one unit on each end of the cables), greatly improving testing accuracy and efficiency. Battery capacity has also been significantly increased-from the original 340 mAh to 500 mAh and 700 mAh-for extended operation time. The AT-3 is Ideal for testing powered speakers, effect pedals, cables, IO boxes, IEM systems, mixers, and more, making it a perfect tool for audio engineers and live sound professionals.

• Signal Generator: 1 kHz sine wave or pink noise
• output level options: -10 dB, -20 dB, and -40 dB
• XLR Cable Testing（Supports Remote Cable Testing）
• XLR Input Metering: SG threshold -20dBu, PK threshold +10dBu
• Phantom Power Check: solid: 44 - 52 V, fashing: 24 - 44 V
