Universal Audio Apollo Twin X USB DUO Audio Interface - Heritage Edition

The Apollo Twin X USB DUO Heritage Edition is a high-end desktop audio interface from Universal Audio built for serious musicians, producers and engineers who demand studio-grade conversion, classic analog tone and real-time DSP-powered plug-ins. Despite its compact form-factor, it brings many of the technologies found in larger Apollo rack units to the desktop.

Why it stands out

• Elite A/D & D/A conversion – The Twin X boasts 24-bit/192 kHz resolution with a dynamic range of up to 127 dB and ultra-low distortion (~–117 dB THD+N), giving you clarity, air and punch unmatched in many desktop interfaces.

• Unison™ enabled preamps – Two mic/line preamps on the front come with Unison technology, meaning you can track through exacting emulations of classic preamp/tube/transformer circuits (Neve, API, Manley, Avalon, etc.), with correct impedance and gain-stage behaviour.

• Realtime hardware DSP processing – The “DUO” in the name refers to the UAD-2 DUO Core DSP onboard. This means you can run UAD plug-ins in real time (with near-zero latency) while tracking, without overloading your computer CPU.

• Heritage Edition plug-in bundle – This version includes a curated set of premium UAD plug-ins (Teletronix LA-2A Classic Leveler, 1176 Classic Limiter, Pultec Passive EQ Collection, UA 610 Tube Preamp & EQ, Pure Plate Reverb, etc) — an added value that delivers vintage tone out of the box.

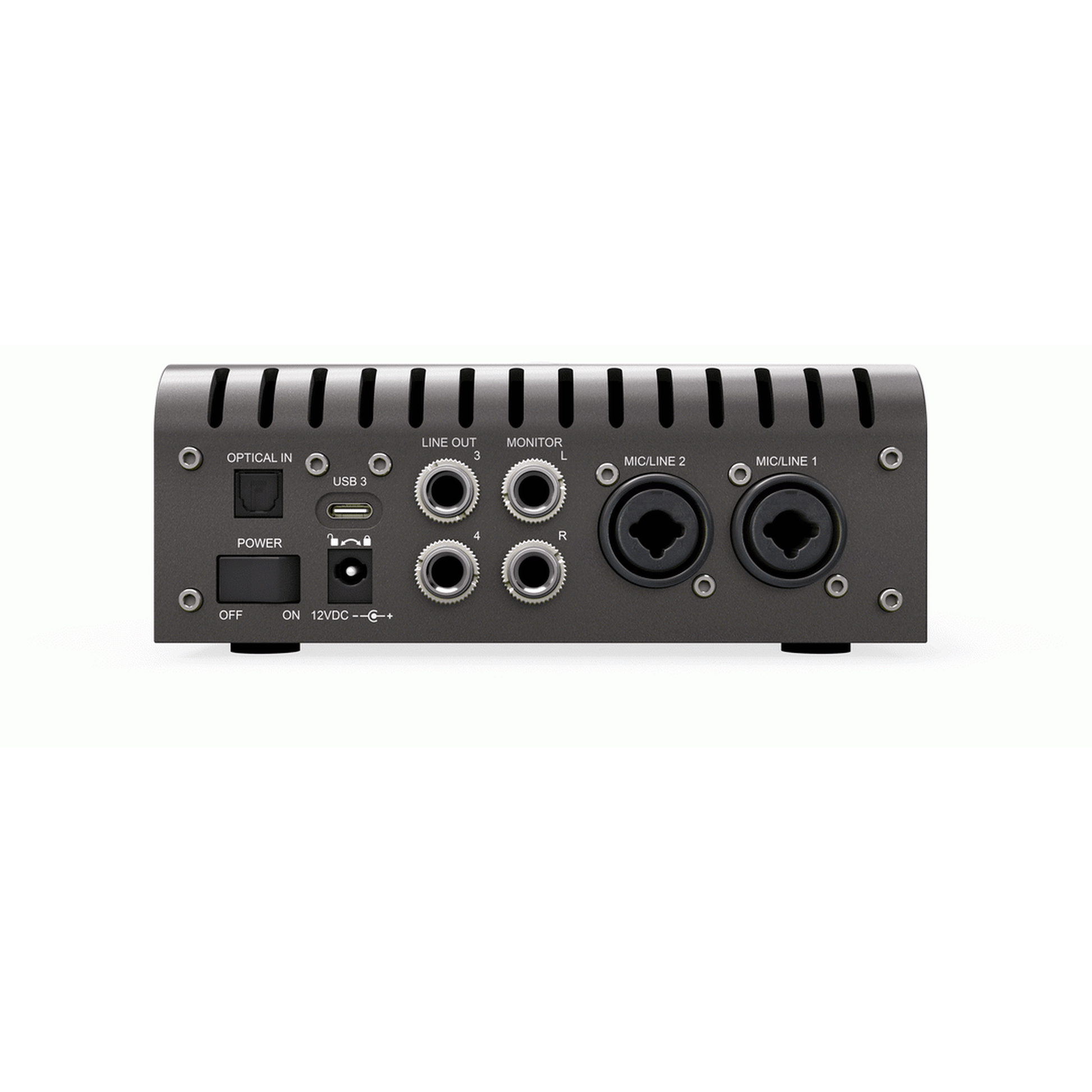

• Fully featured I/O in a desktop form – On the connectivity side: 2 combo XLR/TRS mic-line inputs, a front-panel Hi-Z instrument input (for guitar/bass/keyboard), 2 monitor outputs + 2 line outputs, headphone output, plus an optical ADAT/SPDIF input for expansion (adding up to 10 × 6 I/O) via ADAT.

• Studio-friendly monitor controls & talkback – The unit includes monitor control features such as Mono, Mute, DIM, ALT output, and a built-in talkback mic, making it well suited for serious tracking workflows.

Sonic character & tracking experience

Because of the high-end conversion and Unison preamps, the Apollo Twin X delivers a sound that’s often described as “analog-yes, but transparent enough for modern production.” You get the richness and coloration of classic hardware when you want it (via the plug-ins/unison), but also the pristine clarity needed for modern recording and mixing. The inclusion of the HDR plug-in bundle means you can immediately track vocals, guitars, etc., with professional-level tools — the kind of gear used on hit records.

Ideal use-cases

• Solo artists, producers or small studios who want studio-quality recordings without a large rack of gear.
• Recording vocals, acoustic instruments, guitar/bass DI, keyboard with high fidelity and real-time vintage processing.
• Projects where you want both tracking and mixing capabilities (thanks to the UAD plug-in ecosystem and premium conversion).
• Windows-based systems (important note, see compatibility below).
• Users who want to build a “hybrid workflow” — i.e., track through analog-emulation preamps and mix with analog plug-ins — but in a modern, in-the-box environment.

Things to note / compatibility considerations

• The “USB” version (as in this model) is targeted at Windows systems; some users report Mac compatibility issues. If you have a Mac, you may want to verify driver support and ensure your OS is supported.

• Because it uses hardware DSP, you’ll want to make sure your computer and driver setup are configured properly for low-latency tracking to get the full benefit.
• Always check expansion needs: it has ADAT/SPDIF for additional inputs, but if you anticipate large multi-mic sessions, you may need more channels than the built-in 2 mic preamps.

If you’re in the market for a premium desktop audio interface that gives you top-tier conversion, authentic analog character, and access to the powerful UAD plug-in ecosystem — the Apollo Twin X USB DUO Heritage Edition is a standout choice. It offers professional I/O, tracking features, zero-latency DSP capability, and the kind of tone that can elevate your recordings from “good” to “next-level.” If your workflow is serious about both tracking and mixing, this interface gives you big-studio capability in a compact form.
