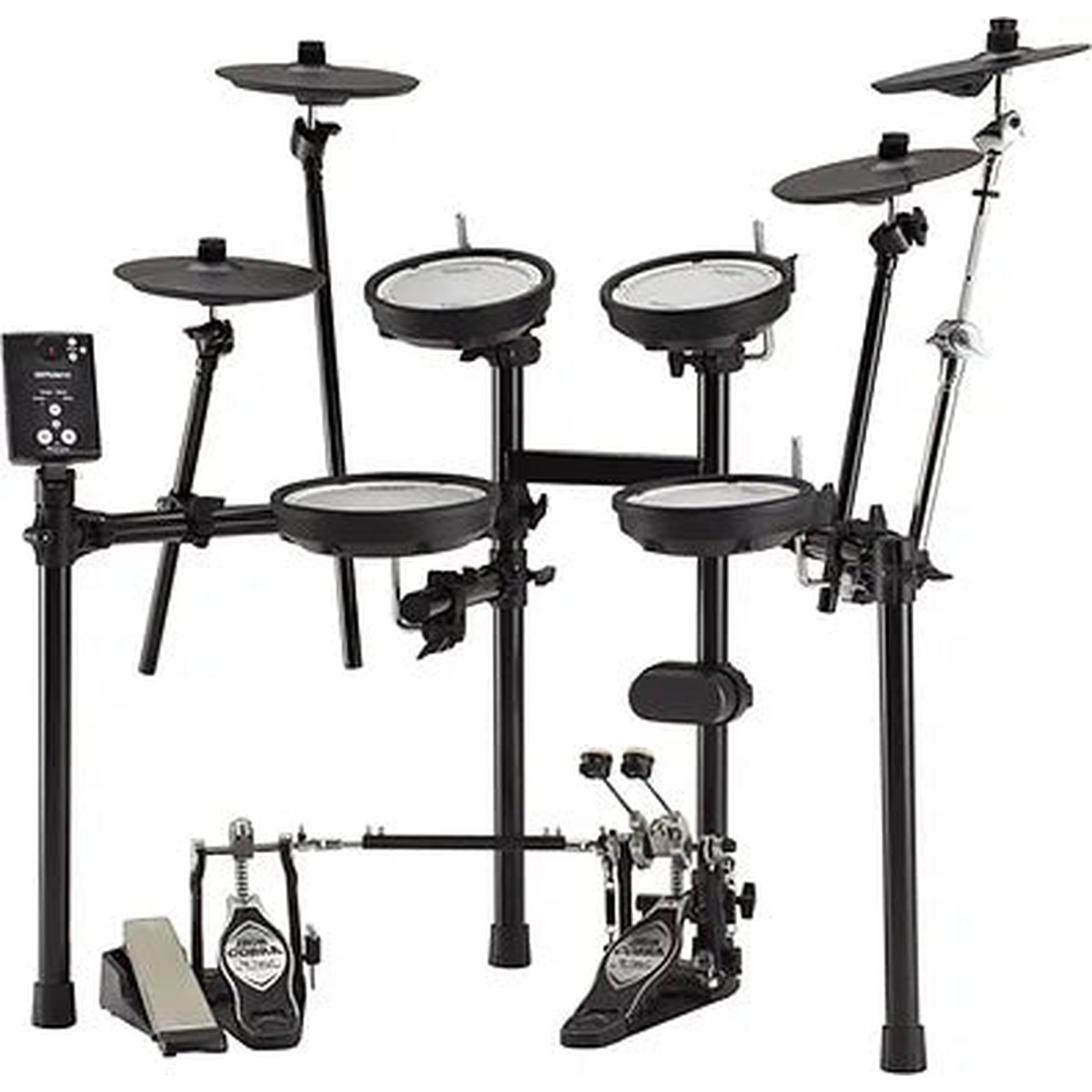

Roland TD-1DMK Electric Drum Kit

Introducing the V-Drums TD-1DMK

The V-Drums TD-1DMK is an electronic drum set with legendary Roland quality and durability, as well as double-mesh head pads for quiet drumming with great playing feel!

With all double-mesh heads for superior stick resistance, natural rebound and true-to-life tonal changes and expression, the TD-1DMK is the perfect partner for any drum student serious about taking their drumming to the next level.

If you used to play drums, you’ll appreciate how good it feels to nail that beat and play along to your favourite songs. Simply connect your smartphone to the V-Drums TD-1DMK and play and, if you need to brush up your skills, use the on-board coach function or Melodics app to get that beat back.

Connect to Interactive Apps for Learning

There’s no substitute for a great drum teacher when learning drums, but motivation to practice and maintaining focus outside of lessons is key to improving your drumming skills.
Melodics for V-Drums offers step-by-step, interactive play-along lessons, with free courses for V-Drums players.

SPECIFICATIONS

Kit configuration (*1)

Kick, Snare, Hi-hat, Hi-hat control pedal, Tom x 3, Crash, Ride, Drum stand

Kick: Compatible for using a double kick pedal
Snare (PDX-8): 8 inches, double mesh head (2-ply), dual trigger (head, rim)
Hi-hat (CY-5): 10 inches (fixed-type)
Hi-hat control pedal: Detectable for half-open stroke
Tom (PDX-6A) x 3: 6 inches, double mesh head (2-ply), single trigger (Head) *2
Crash (CY-5): 10 inches, dual trigger (bow, edge)
Ride (CY-5): 10 inches, dual trigger (bow, edge)
Drum stand: Four-post type rack stand

Drum kits

15

Coach functions (10 modes)

Time check (easy)
Time check (hard)
Change-up
Auto up/down
Quiet count
Tempo check (easy)
Tempo check (hard)
Stroke balance
Timer
Recording

Songs

15

Metronome

Tempo (40–260)
Rhythm type (5 types)
Sounds (8 types)
Volume (10 levels)

Display

7 segments, 3 characters (LED)

Connectors

OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)

Interface

USB MIDI (transmitting only)

Power supply

AC adaptor

Current draw

150 mA

Accessories

Setup Guide
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Special connection cable

Options (sold separately)

Additional crash cymbal (Crash2): CY-5, MDY series *3
Kick: KD-9, KD-10, KT-9, KT-10
Personal drum monitor: PM series
V-Drums mat: TDM series

*1 Kick pedal and drum throne are not included.

*2 Specially designed for the TD-1 Double Mesh Kit, unsupported for using a rim-shot.

*3 MDY-12 is additionally required for mounting a CY-5 on the stand.
