NU-X Mini Core Series Hook Drum & Loop Effects Pedal
NU-X Mini Core Series Hook Drum & Loop Effects Pedal

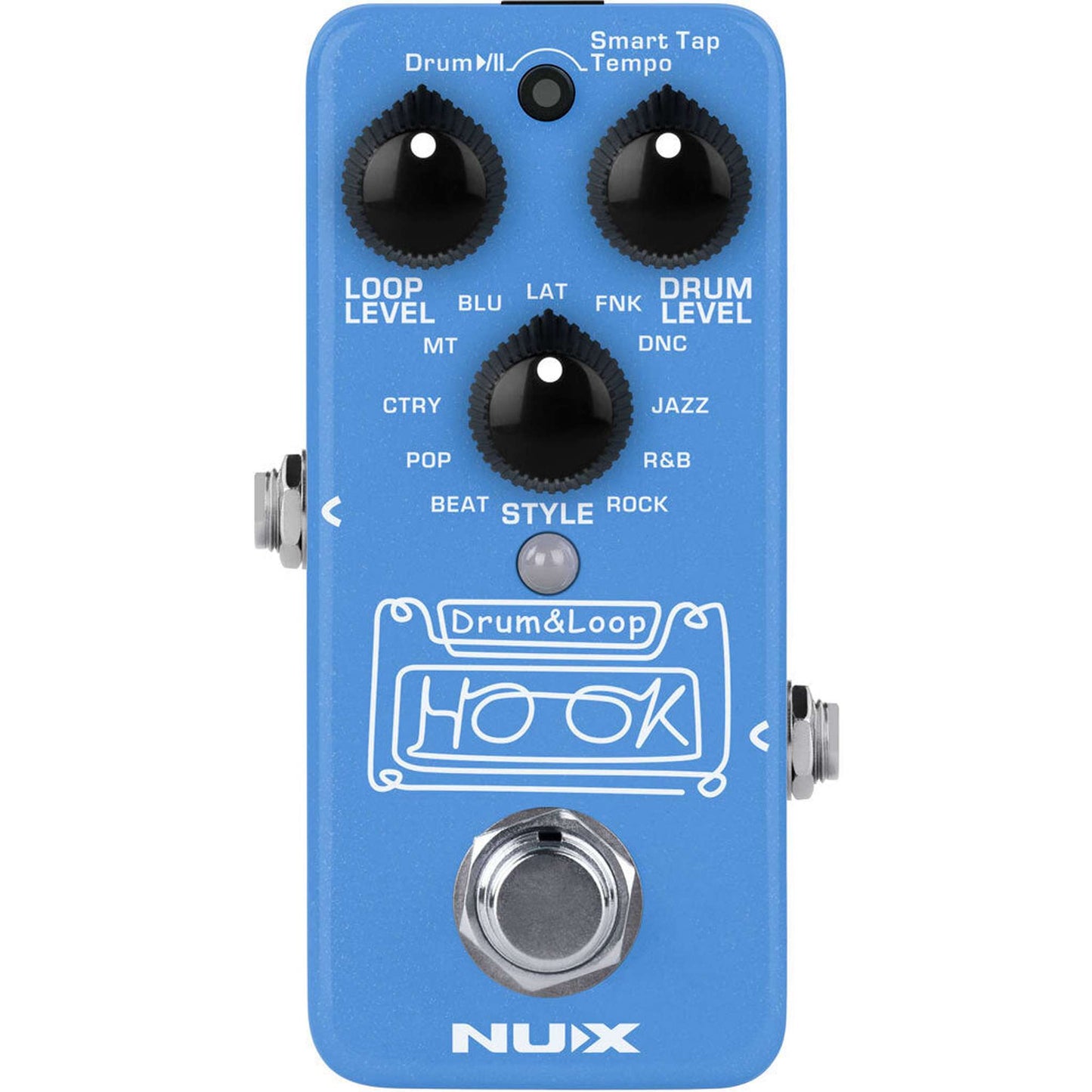

The HOOK Drum & Loop (NDL-3) is a mini looper pedal with auto tempo detection. Simply record a phrase loop, then add a synchronized drum beat. Or you can use the included Smart Tap Tempo and play the drum beat, then start to record the phrase loop. The HOOK is intelligent and simple to operate.
FEATURES:
- 24-bit phrase loop with auto tempo detection rhythm in a mini enclosure.
- 11 rhythm styles with Smart Tap Tempo.
- Up to 6 minutes recording, unlimited overdubs.
- Drum and Loop volumes can be adjusted separately.
- Independent loop & drum playing.
- True-bypass and analog dry-through.
- 1/8” phones out for silent practice.
- Low power consumption. (less than 100mA)
- USB-C port for firmware update, file import/export.
SPECIFICATIONS:
- Input Impedance: 1MΩ
- Output Impedance: 10kΩ
- Phones Output Impedance: 10Ω
- Dynamic Range: 103 dB
- DSP Processing: 44.1KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit
- Power: 9V DC (Negative tip, Optional ACD-006A adapter)
- Current Draw: Less than 100mA
- Dimensions (L x W x H): 94 x 51 x 53mm
- Weight: 175g
RECORDING OPTIONS
When recording your phrase loop, you can choose Normal Recording or Auto Recording. Normal Recording (NR) is like regular looper pedal, while you press the footswitch, it starts to record immediately.
When in Auto Recording (AR) mode, press the footswitch to record arm the looper. HOOK will start recording once it detects your guitar signal. This is convenient while you put the HOOK on the desk, and you can use your hand instead of your foot to operate it.
Note: To switch between NR/AR, hold the footswitch while plugging in the AC adapter to bootup the pedal. NR: Drum Tap indicator flashes BLUE 3 times. AR: Drum Tap indicator flashes RED 3 times.
Even without the phrase loop, the HOOK can be used as a drum beat with Smart Tap Tempo. It offers 11 drum beat styles with high quality sound samples, and useful rhythms for practice.
The HOOK features 24-bit/44.1kHz recording resolution and 6 minutes recording time with unlimited overdubs. It is true-bypass and analog dry-through. The drum beats and loop playback are independent, which means that you can stop the loop and keep the drum beat playing. Re-play the phrase loop as you want.
The HOOK also includes a PHONES out jack! We know lots of musicians love to use pedals, and they sometimes need silent practice! And finally, you can export your phrase loop WAV file through HOOK APP, please download it from the HOOK product page.
Note: Plugging in the AC adapter when you Press & Hold Drum Tap switch to bootup the pedal will enter into Alt tweaking mode. The Drum Tap indicator and footswitch indicator will flash RED. Now the DRUM LEVEL knob can adjust the phones volume. You can play guitar into the pedal and tweak the DRUM LEVEL knob to adjust the phone volume. Press the footswitch to quit Alt tweaking.
Caution: Please be mindful when adjusting the headphone levels. Protect your hearing!
USB PORT
The USB-C port is for firmware updates. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software.
You can download the related firmware, DFU updater and firmware update guide from product page via the link below.
* Factory reset: Connect USB cable to PC, press & hold the footswitch and Drum Tap switch simultaneously, then bootup the pedal. The pedal will do Factory Reset.
If the pedal doesn’t have issue, DO NOT do factory reset, it will rebuild the NANDFLASH.
The USB-C port supports PHRASE LOOP export. (WAV 44.1 kHz / 24-bits mono format) Connect USB cable to a PC, and open HOOK APP, then you can export or import the file.
** Free Firmware Updates and Manuals are available by clicking here then selecting "Support"
