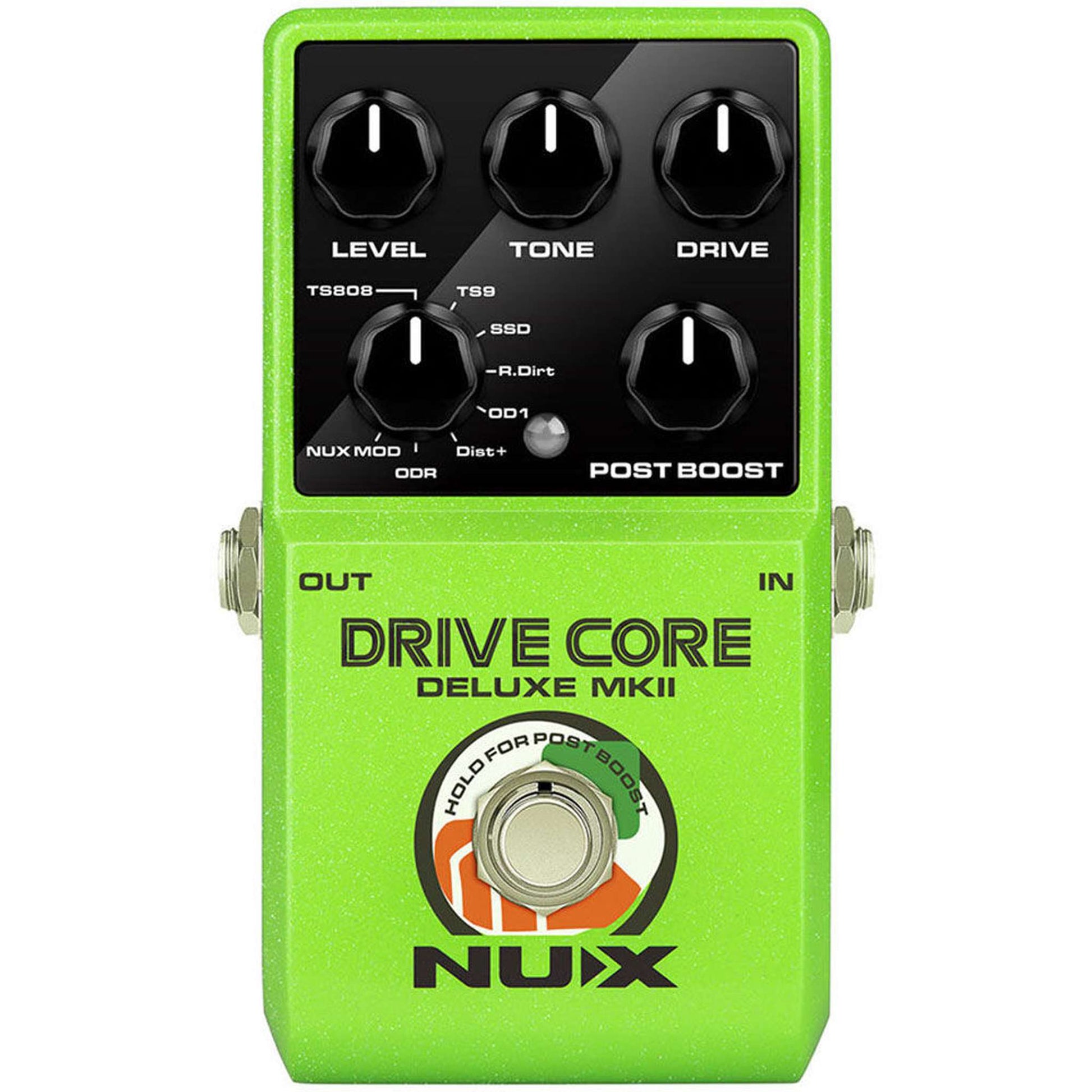

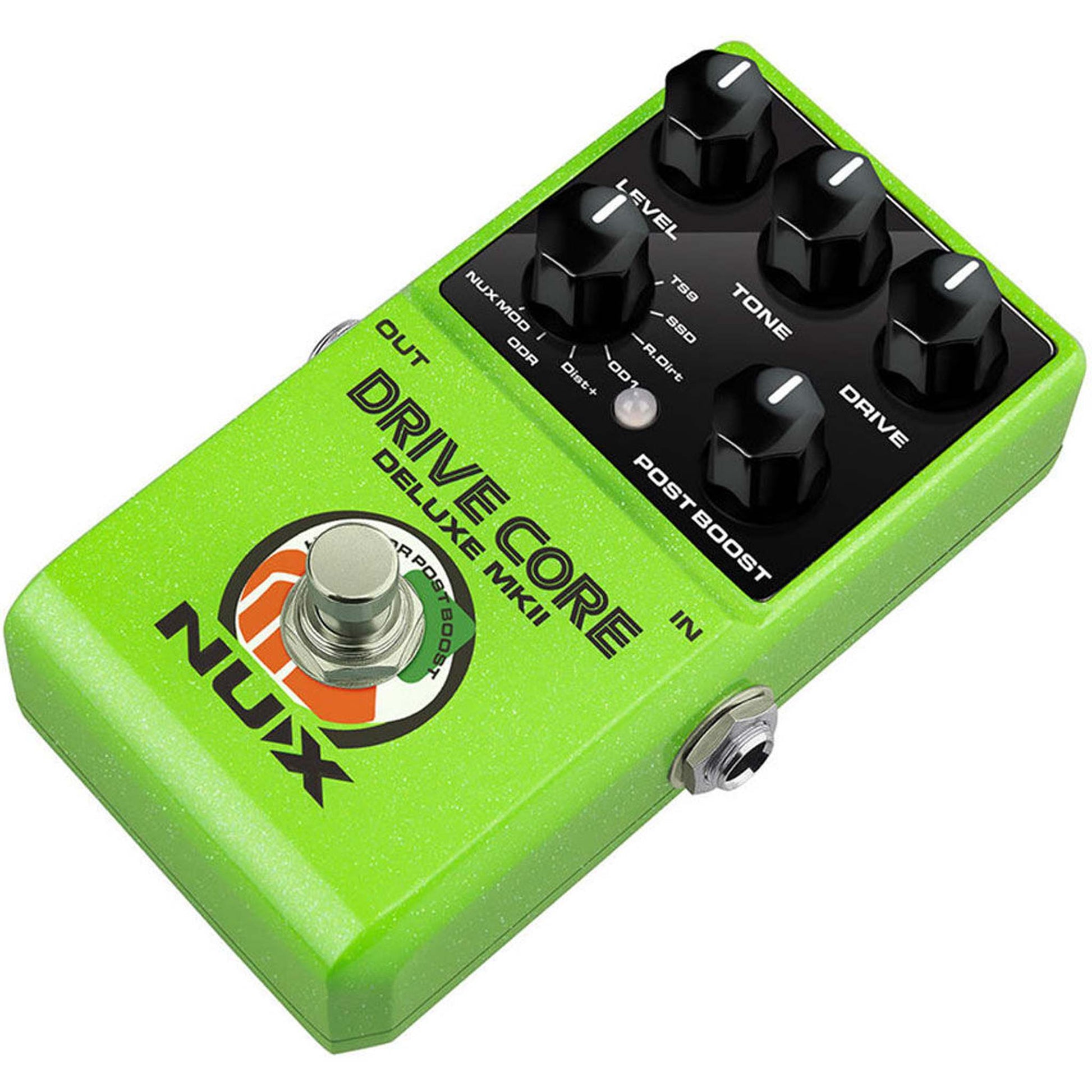

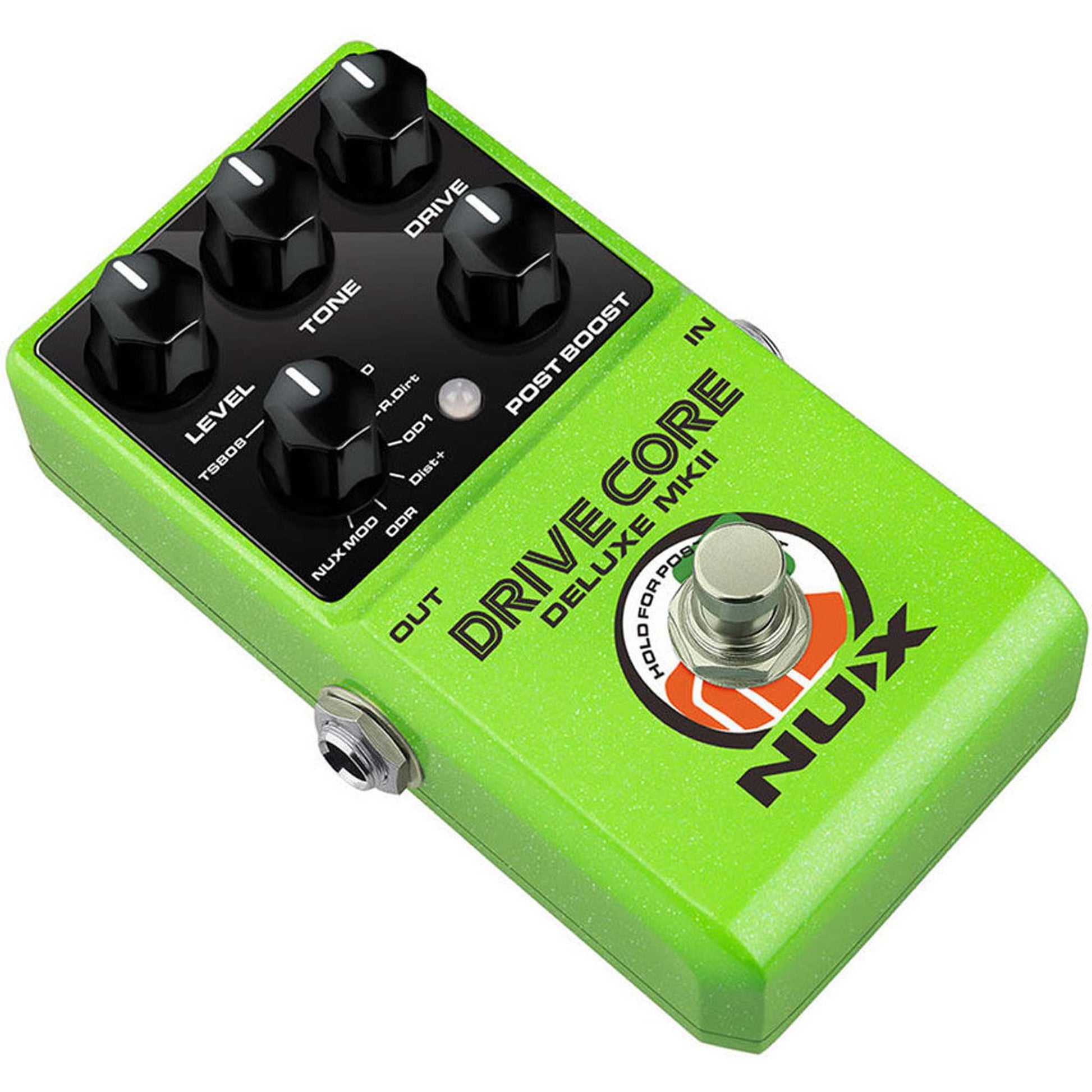

NU-X Core Stompbox Series Drive Core Deluxe MKII Effects Pedal

8 iconic drive circuits in one pedal. The NU-X Drive Core Deluxe MKII (Wasabi Drive) is an overdrive pedal that combines 8 distinct circuits, offering a wide range of tones. From the iconic Texas Blues to the Nashville Overdrive, you can effortlessly dial in your perfect drive sound using the intuitive rotary knob.

FEATURES:

• 100% analog circuits with digital switching rotary knob
• True bypass
• 8 iconic drive circuits in one pedal
• Holding FOOTSWITCH to engage/disengage the Post Boost.

SPECIFICATIONS:

• Input impedance: 500kOhms
• Output impedance: 820Ohms
• Power: 9V DC (Negative tip, Optional ACD-006A adapter)
• Current Draw: 35mA
• Dimensions (L x W x H): 122 x 72 x47mm
• Weight: 270g

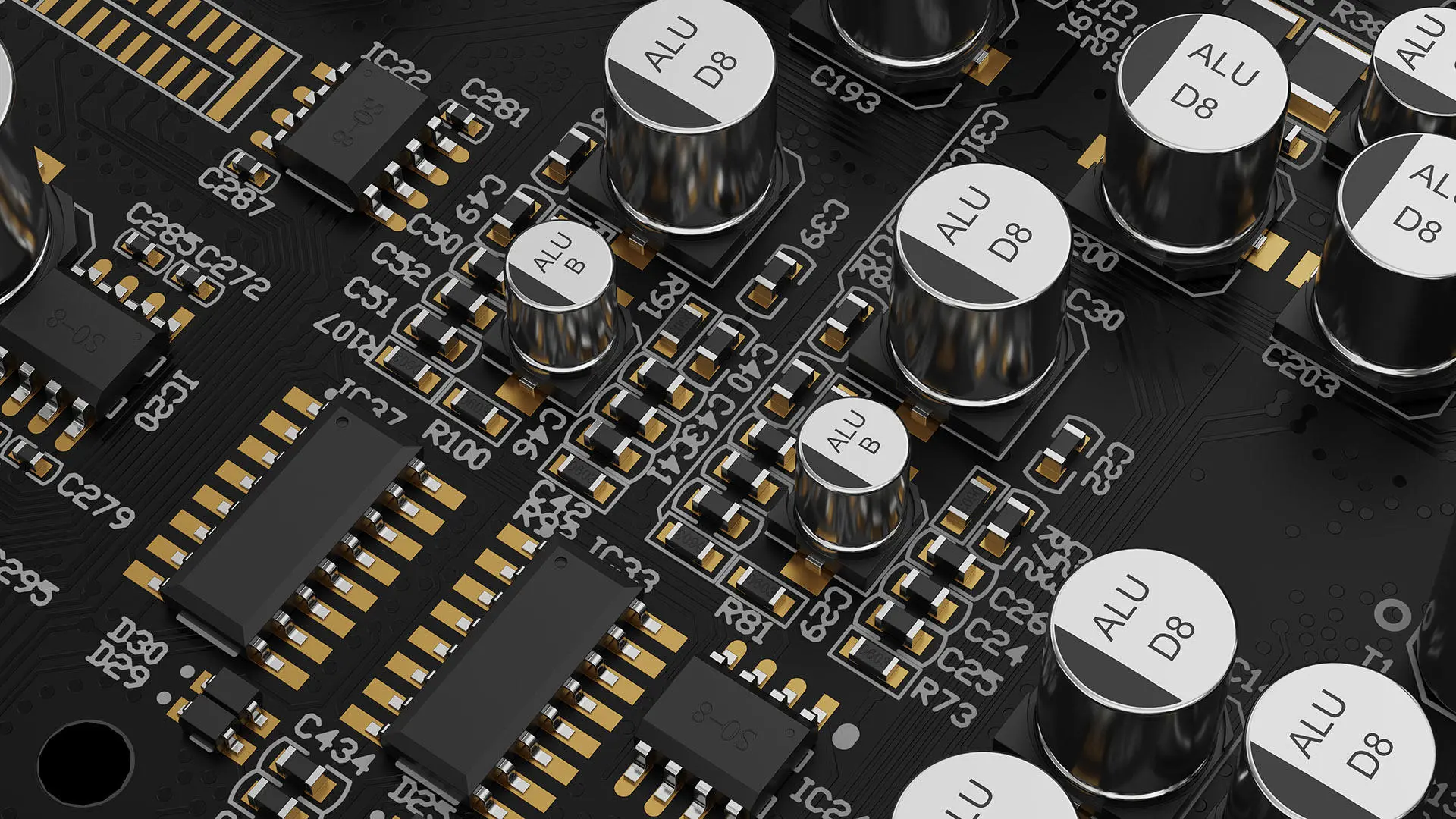

100% Analog Circuit and Lossless Tone Switching
The DRIVE CORE DELUXE MKII features a 100% pure analog circuit with 8 distinct TS-style sounds, effortlessly switched via high-quality relay circuitry, ensuring no loss of tone and achieving a perfectly authentic sound reproduction.

Perfectly Excels as Both a DRIVE BOOST and MAIN TONE OVERDRIVE
By holding the footswitch, you can engage or disengage the Post Boost, adding up to 7dB of gain, making it ideal for solos without the need for an additional boost pedal.

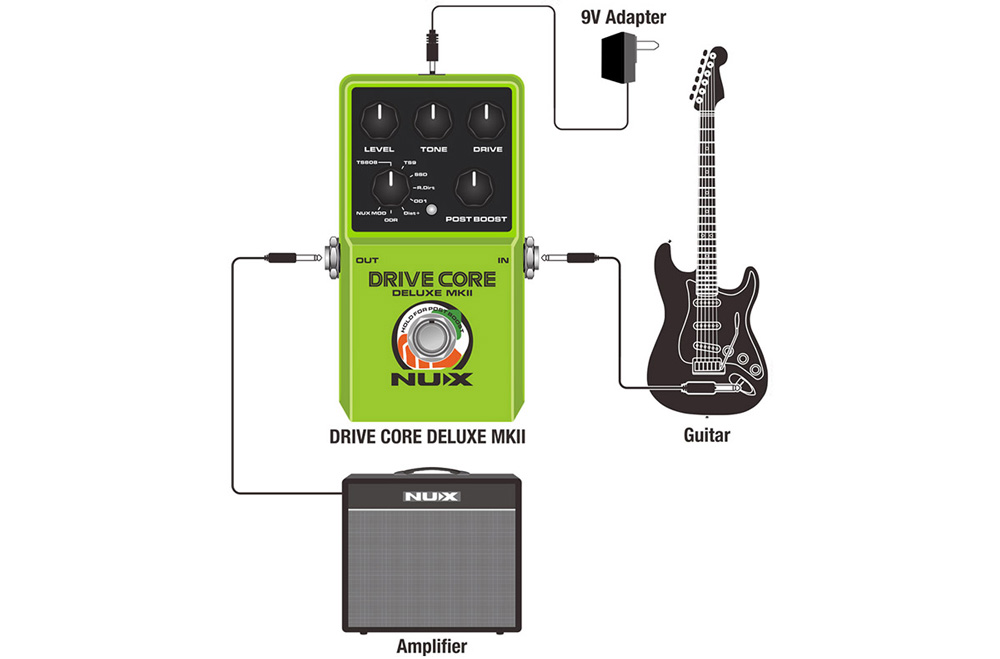

Connection

** Free Firmware Updates and Manuals are available by clicking here then selecting "Support"
