KNA SG-1 Version 2 Acoustic Guitar Pickup

KNA SG-1 Version 2 Acoustic Guitar Pickup

$189.00
$189.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Portable bridge-mounted piezo for steel-string acoustic guitar

Encased in lightweight tonewood, SG-1 version 2 is a piezo pickup for guitar that transfers the natural amplified sound of your instrument without requiring modification.

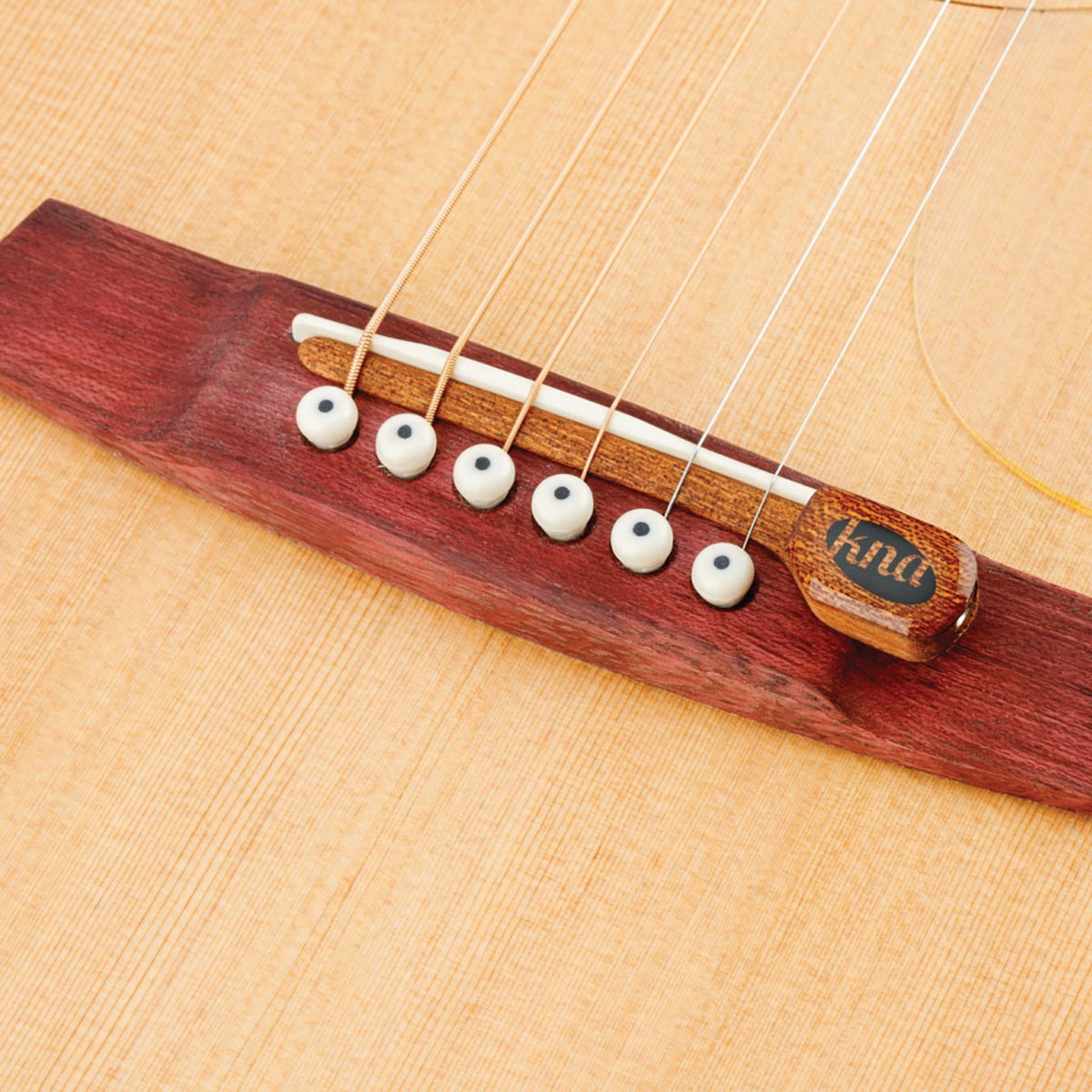

Held in place by the tension of tuned strings, SG-1 is an acoustic guitar bridge pickup that installs safely and securely between the saddle and pins.

Features:

Installs with no modification

Held in place by the tension of tuned strings, SG-1 is an acoustic guitar bridge pickup that installs safely and securely between the saddle and pins.

Wood case

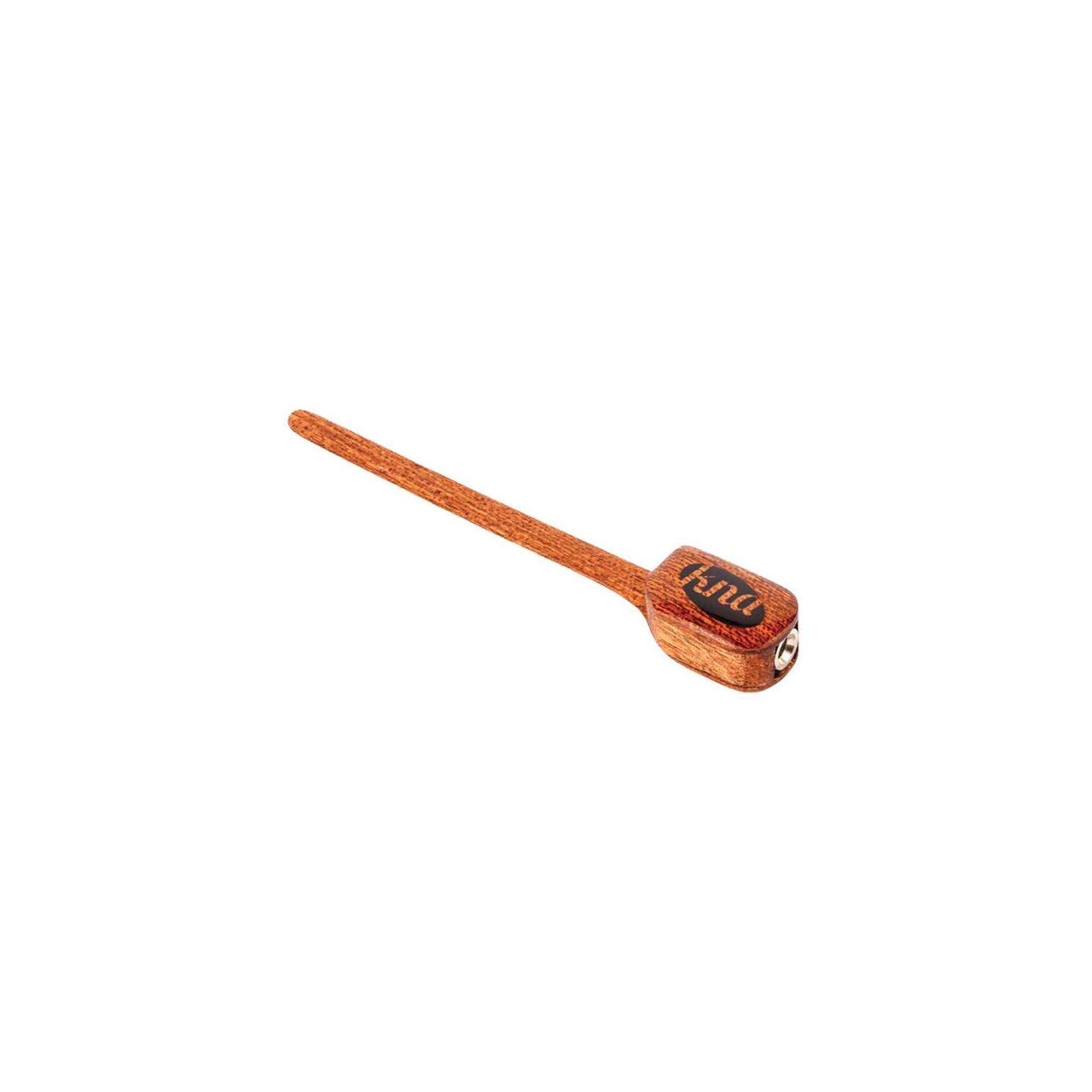

The piezo element is encased in elegant and stylish mahogany. The lightweight assembly offers maximum tonal sensitivity.

Natural sound

SG-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.

Complete set

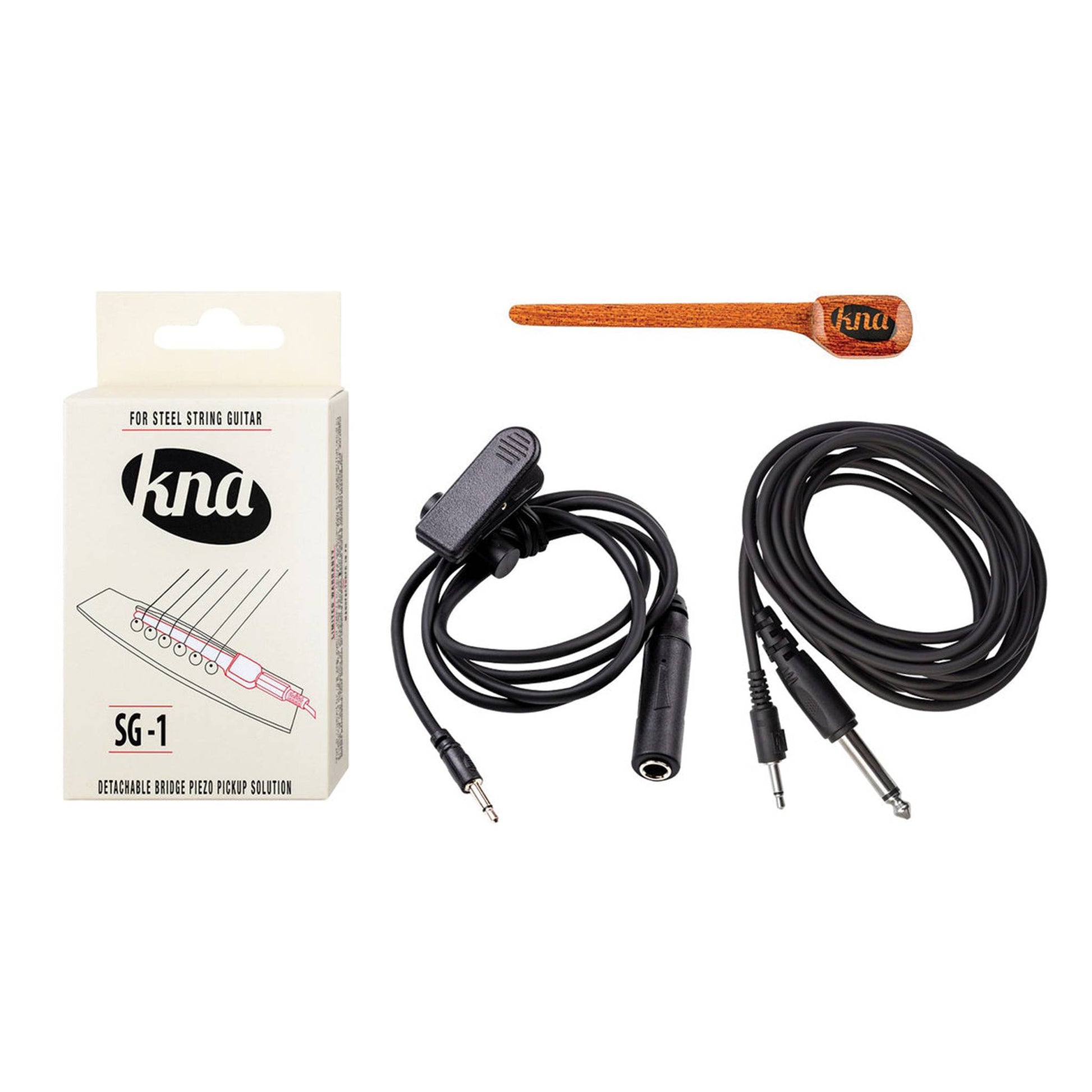

Two cables are included — a 9-ft. 1/8" to 1/4" and a 3-ft. 1/8" to female 1/4" jumper with safety clip to connect with your instrument cable.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

 SPECIFICATIONS
Weight 3.8g. / 0.137oz
Overall length 74mm / 2.91"
Height / jack housing 9mm / 0.35"
Active element measurements
Length 73mm / 2.87"
Width 9.6mm / 0.38"

Thickness

2mm ± 0.05mm

0.079" ± 0.002"
Wood Mahogany
Maximum Impedance 500 Ω
Cable

2.5meter / 8'
