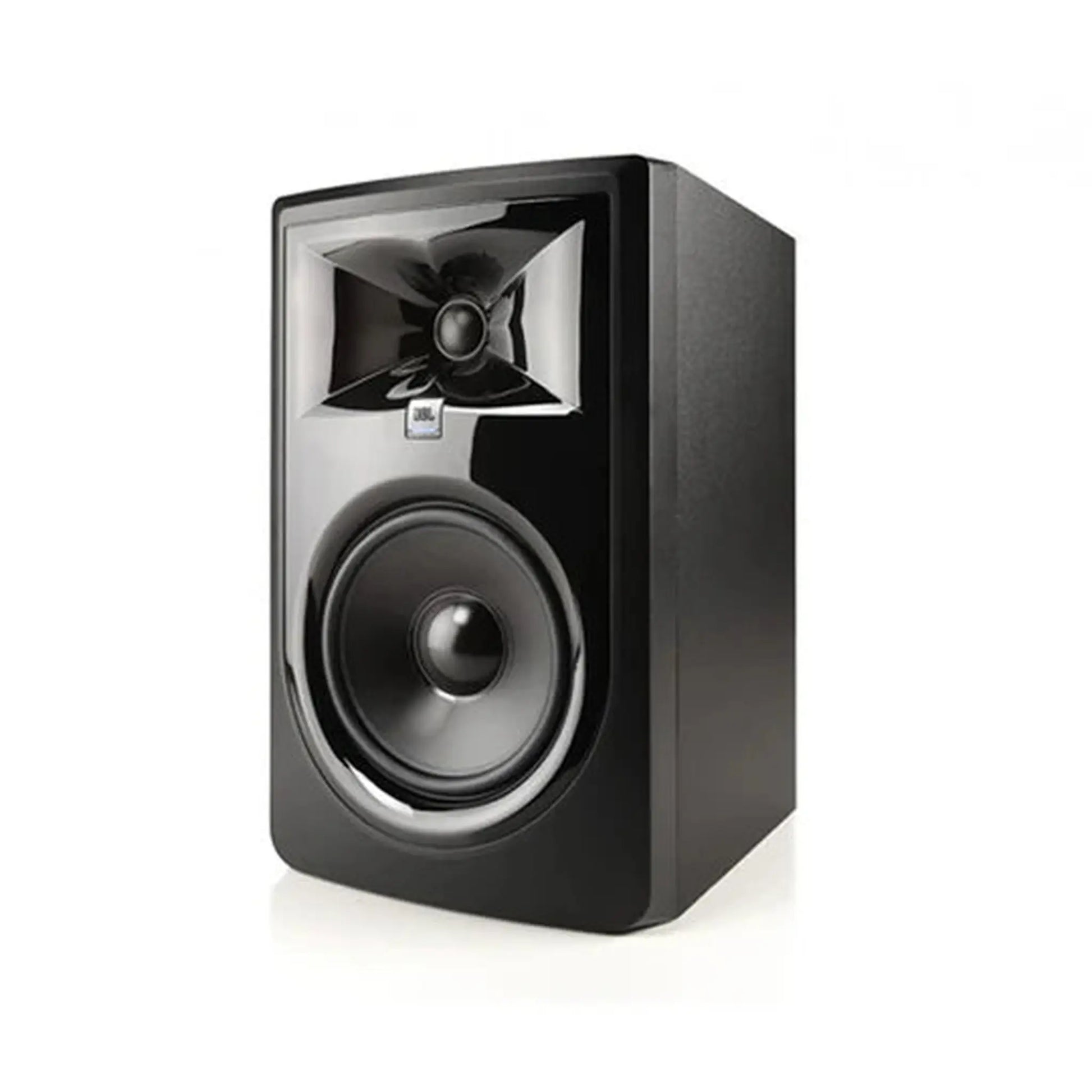

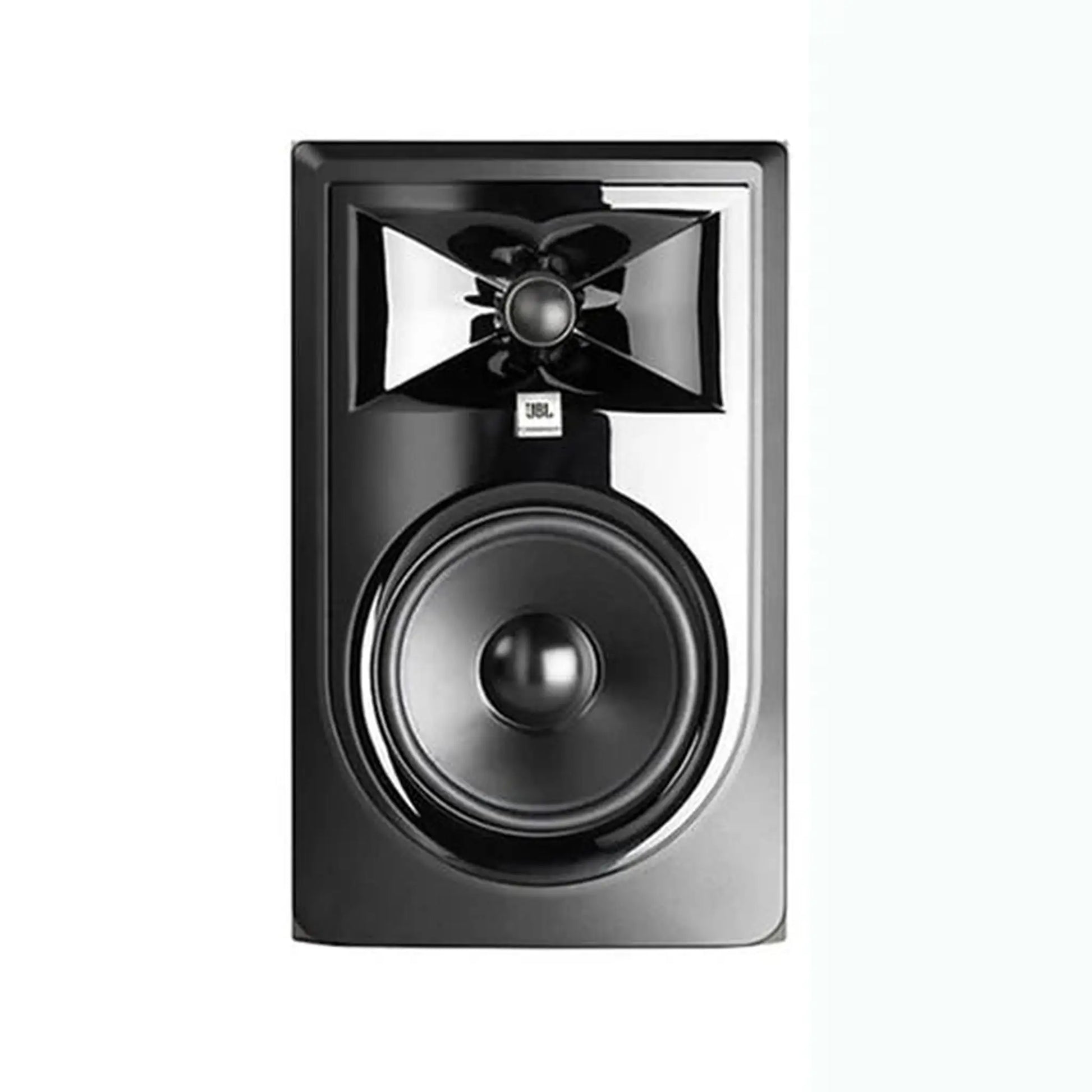

JBL LSR306 MKII 6 Inch Powered Studio Monitor
JBL LSR306 MKII 6 Inch Powered Studio Monitor
Couldn't load pickup availability
The JBL LSR306 MKII is a premium near‑field studio monitor offering reference‑grade accuracy, ideal for critical mixing, mastering, and music production environments. Born from JBL’s acclaimed 3 Series MkII line, it brings refined engineering and audiophile clarity to any workspace.
Features
-
High-Definition Imaging: Features JBL’s patented Image Control Waveguide—first seen in their M2 flagship—ensuring crisp imaging, an expansive sweet spot, and seamless dispersion.
-
Bi‑Amplified Power: Dual custom Class‑D amps (56 W woofer, 56 W tweeter; total 112 W) deliver high SPL capabilities with impressive dynamic range.
-
Refined Transducers: Updated 6.5″ long‑throw woofer and 1″ woven‑composite tweeter enhance linearity, transient response, and reduce harmonic distortion.
-
Slip‑Stream Porting: The patented low‑frequency port offers tight, controlled bass at all listening levels.
Acoustic Control
-
Boundary EQ: Tailor the low-frequency response to compensate for desk or wall reflections via a selectable shelf filter.
-
HF Trim Switch: Three-position switch (-2 dB, 0, +2 dB) allows fine-tuning of high frequencies to match room acoustics or personal taste.
Connectivity & Build
-

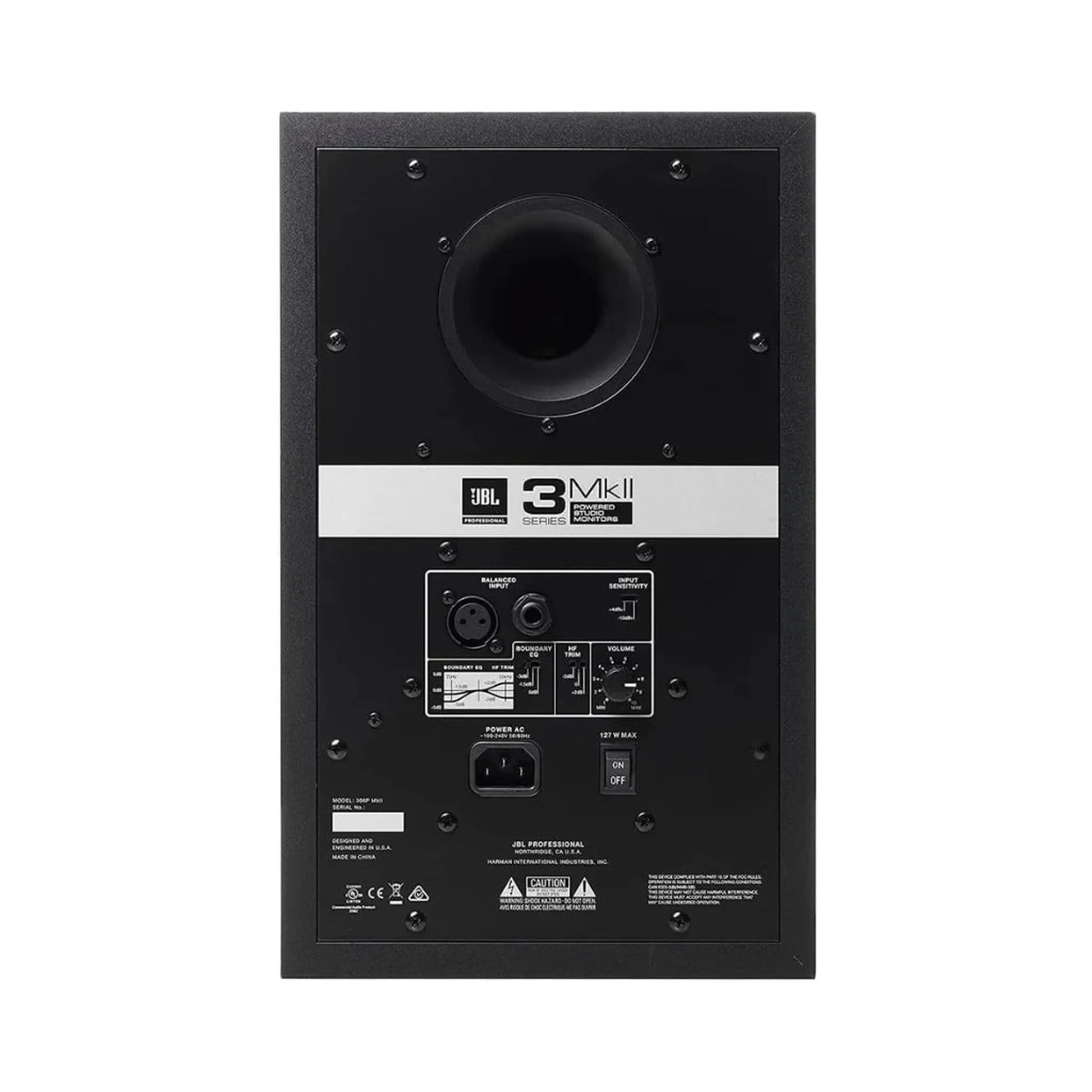

Balanced XLR + ¼″ TRS inputs support both +4 dBu and –10 dBV operating levels with adjustable volume control.
-
Rugged, magnetically shielded MDF enclosure with sleek, modern aesthetics and a compact footprint make it versatile for various studio configurations.
Technical Specifications
Parameter | Value |
---|---|
LF Driver | 6.5″ (165 mm) long‑throw cone |
HF Driver | 1″ (25 mm) woven soft dome |
Frequency Response (±3 dB) | 47 Hz – 20 kHz |
Frequency Range (–10 dB) | 39 Hz – 24 kHz |
Max SPL (peak) | 110 dB |
Crossover | 1.425 kHz, 4th‑order Linkwitz‑Riley |
Reliability & Testing
Each unit undergoes JBL’s stringent 100‑hour full‑power burn-in to ensure long-term durability and consistent performance.
The JBL LSR306 MKII stands as a top-tier 6″ powered monitor, combining precise imaging, powerful bi-amplification, and professional-grade acoustic tuning. Whether you're mixing music, producing video content, or crafting podcasts, it delivers reliability and sonic clarity at a competitive price.
