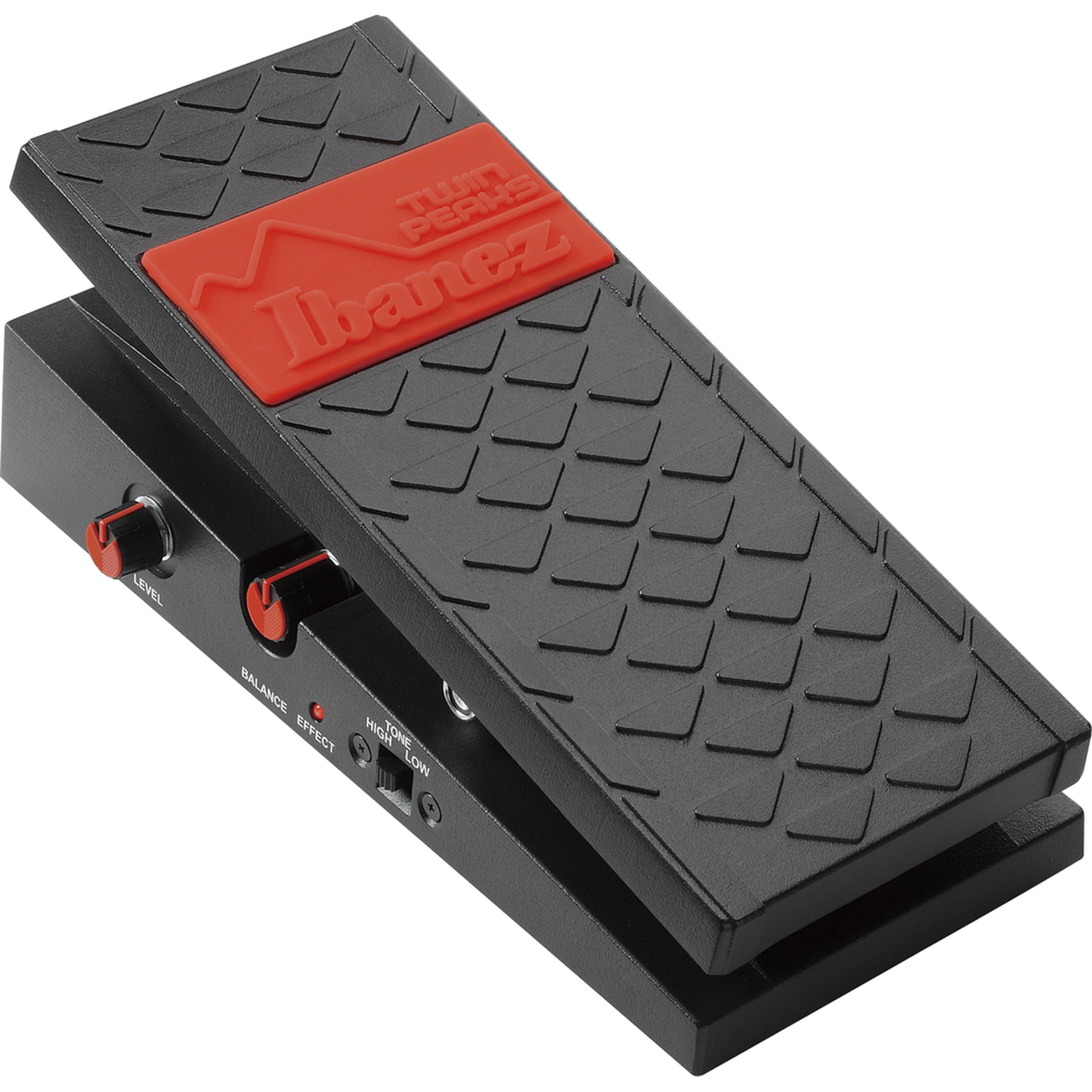

Ibanez TWP10 Twin Peaks Wah Pedal

The Ibanez TWP10 Twin Peaks Wah Pedal takes the classic wah effect and reimagines it with a fresh, highly expressive design that gives guitarists more tonal flexibility and creative control than traditional wah pedals. Featuring dual peak points and innovative controls, this stompbox is ideal for players who want to explore a broader range of wah textures — from funk-driven quack to sweeping vocal-like tones — with dynamic performance on stage or in the studio.

Innovative Dual-Peak Wah Design

• Dual Inductor Circuitry — Unlike conventional wah pedals that have a single sweep-point, the Twin Peaks uses two peak points at different frequencies (higher and lower), giving you a richer, more complex wah character.
• Balance Control — This unique knob blends the mix between the two frequency peaks. Turning it one way emphasizes higher frequencies for a sharper, more traditional wah sound and the other way brings in deeper, throaty tones.

Tone & Output Control

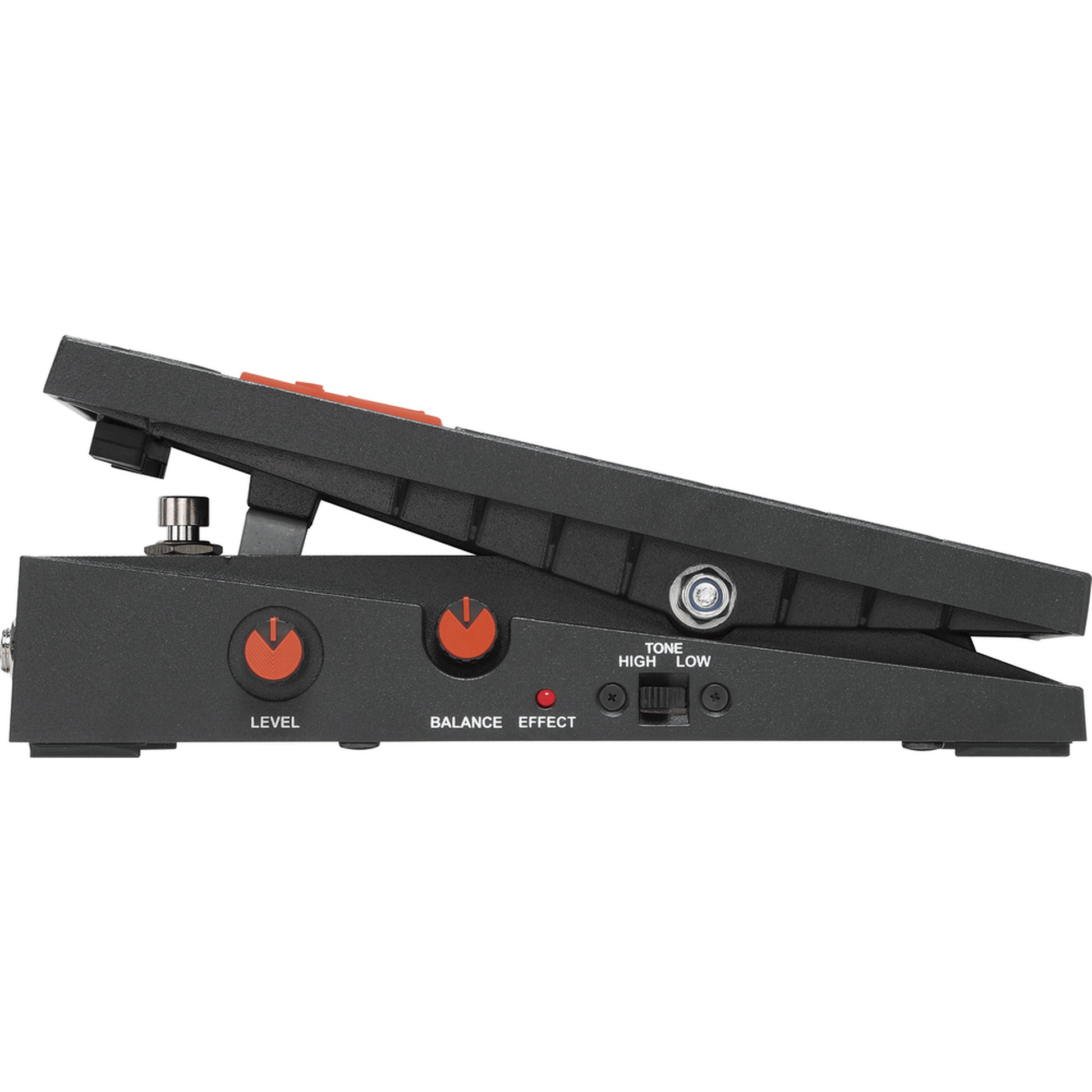

• Tone Mode Switch (High/Low) — Lets you select the sweep range of the wah effect:

HIGH mode sweeps from approx. 670 Hz to 3 kHz on the high peak and 300 Hz to 1 kHz on the lower peak — ideal for cutting, brighter wah textures.

LOW mode sweeps from approx. 440 Hz to 2 kHz and 220 Hz to 750 Hz, giving more traditional, warmer wah tones.

• Master Level Control — Adjusts the overall output volume, offering up to +6 dB boost when turned fully up — great for leads or presence in the mix.

Performance-Ready Features

• True Bypass Switching — Ensures your signal remains clean and uncoloured when the effect is disengaged.

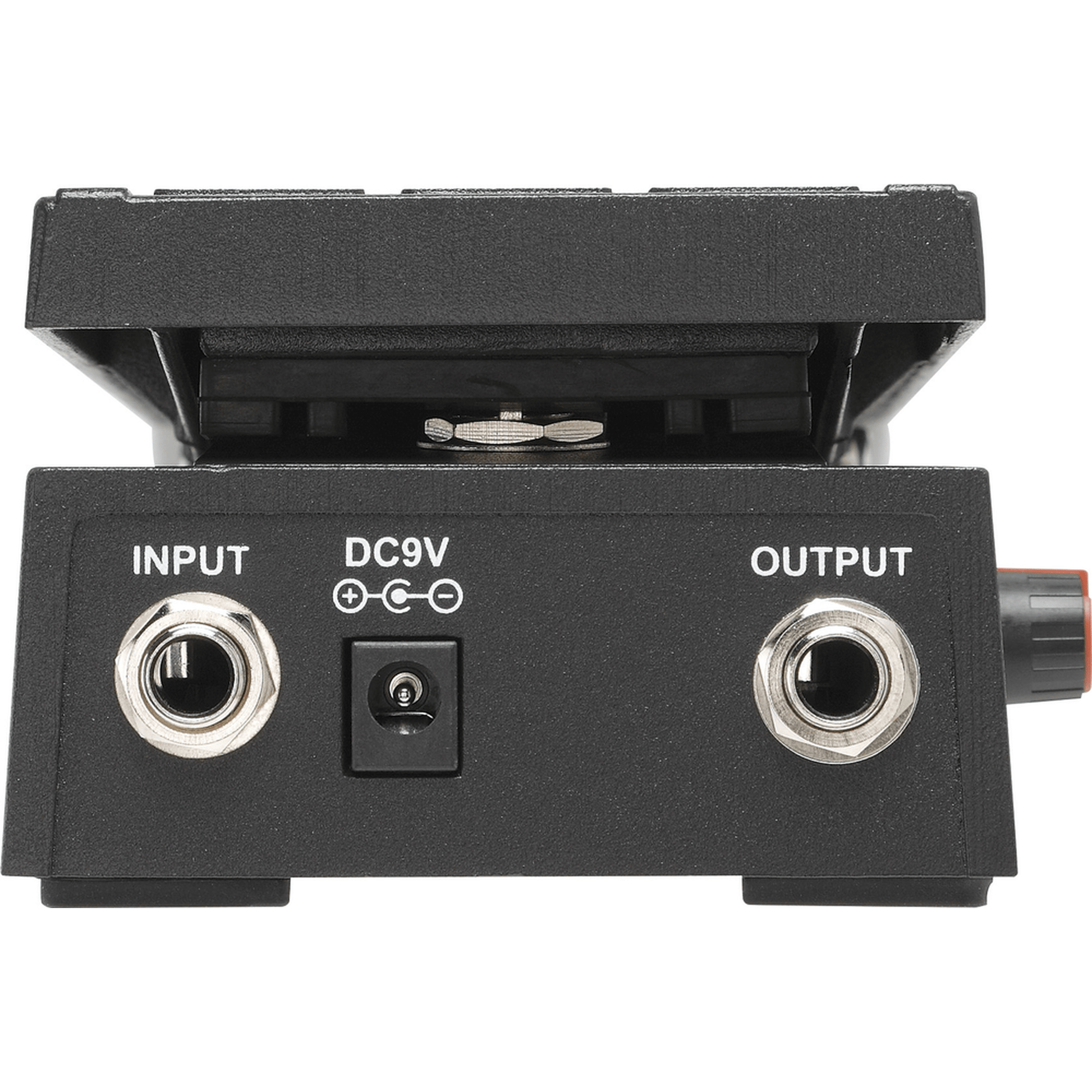

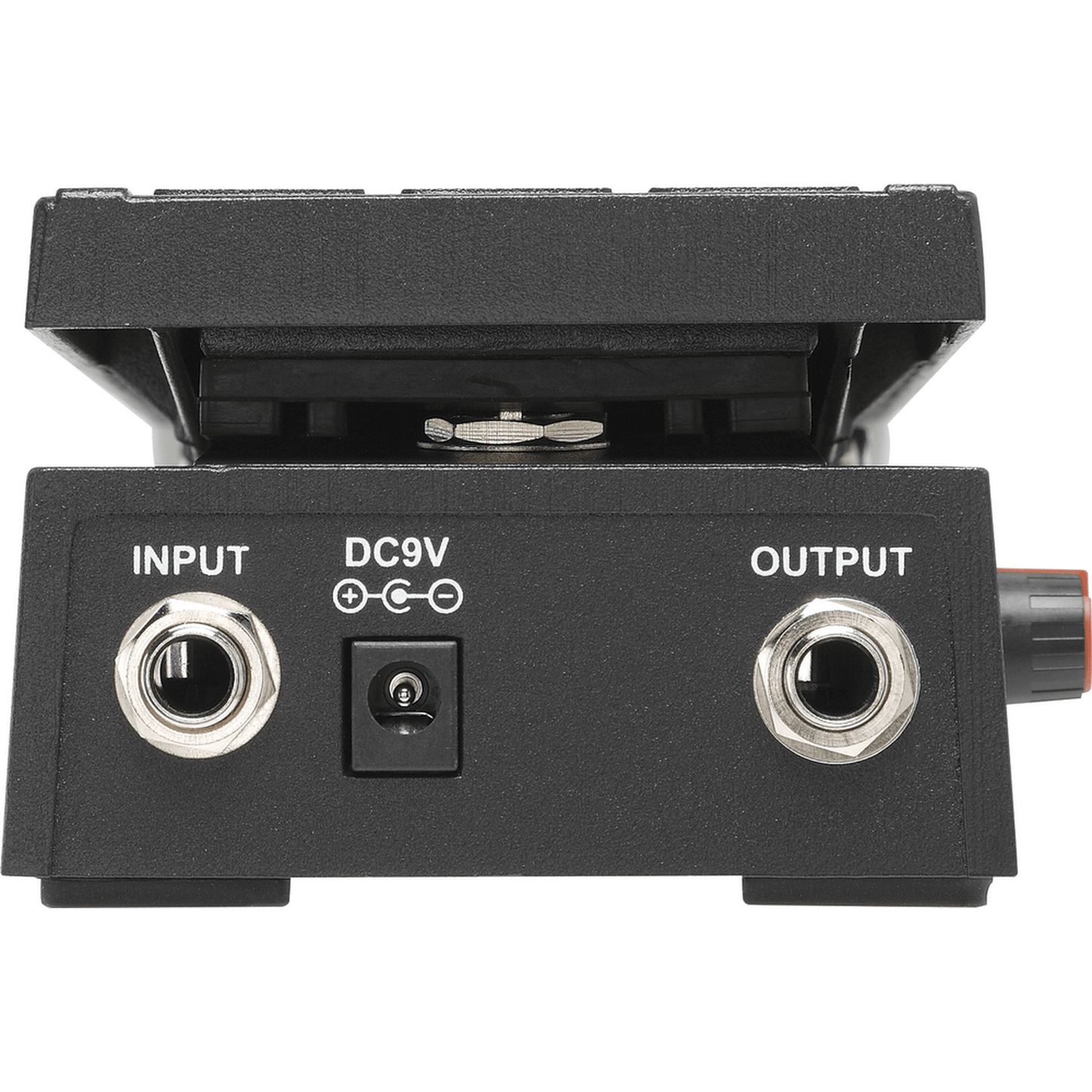

• Standard I/O Jacks — ¼″ input and output for easy integration into any pedalboard chain.
• Flexible Power Options — Runs on a 9 V battery or an external 9 V DC adapter (center negative), making it convenient for both portable and rigged setups.
• Rugged Build — Sturdy compact housing and foot-controlled treadle give dependable performance gig after gig.

What This Wah Does Best

The Twin Peaks wah stands out for its:

• Expanded tonal range thanks to dual sweep points.
• Balance knob experimentation allowing tonal dialing beyond typical wah limits.
• Versatility in genres — from funk and rock to expressive lead playing and ambient textures.

Whether you’re chasing classic quack or want a wah that can push into unique and expressive sonic territory, the Ibanez TWP10 Twin Peaks Wah Pedal delivers a dynamic and inspiring wah experience.
