Eikon

Eikon EKJMA Handheld Wireless System

Eikon EKJMA Handheld Wireless System

$159.00
$159.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The EKJ&M is a UHF quartz locked controlled Wireless Microphone System providing a reliable and high quality signal transmission.

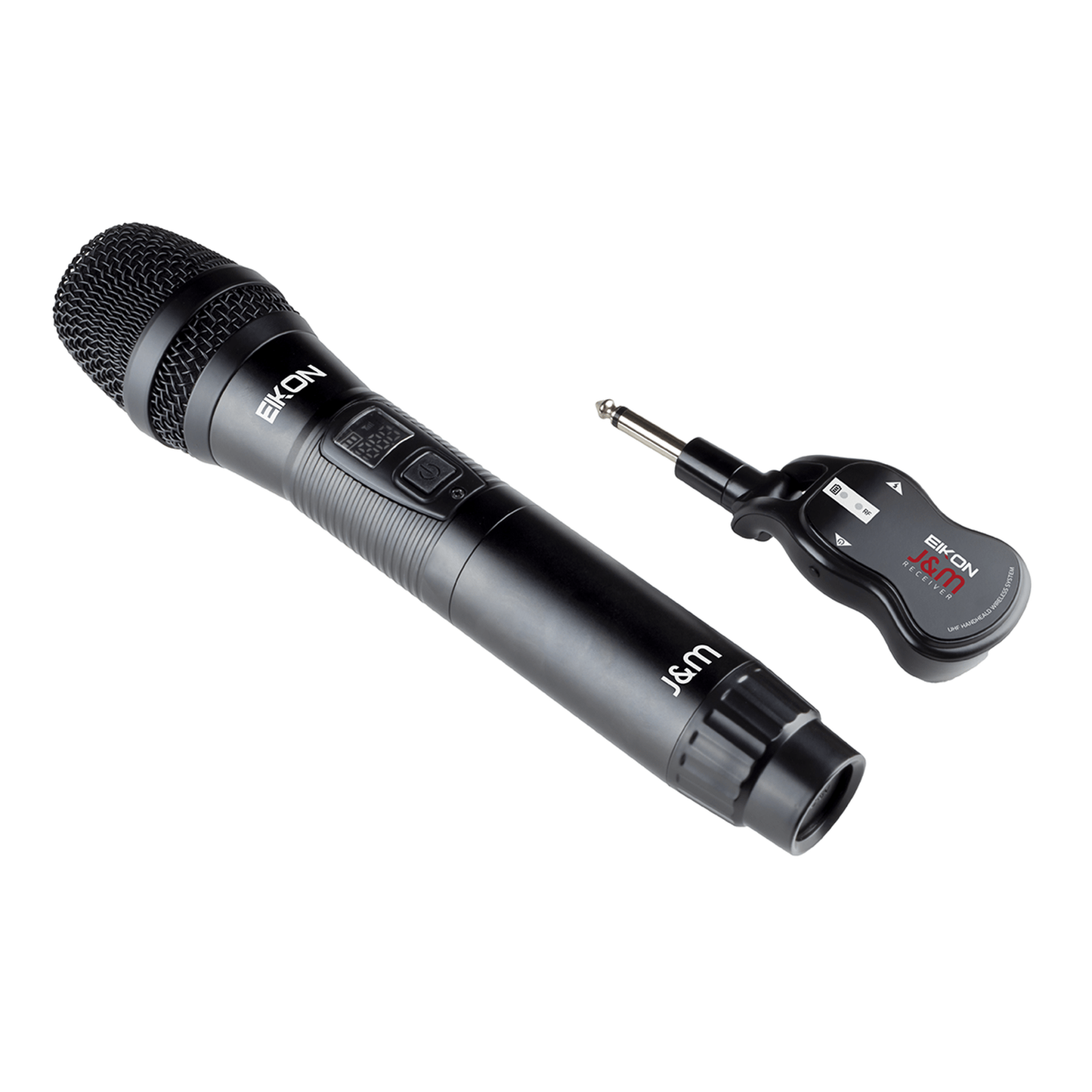

EKJ&M features 3 units: EKJ&M Handheld transmitter, EKJ&M compact “connector sized” receiver and USB to USB-C charging cable.

50 channels frequencies are available, allowing the possibility to use the apparatus with other wireless equipment.

    • UHF 512 – 541,7 MHz frequency band
    • Quartz locked modulation mode
    • Up to 30 meters range
    • Built in 3.7V/500mA lithium battery
    • 5V USB charging cable included
    • Up to 5 hours autonomy
    • Up to 6 systems usable in the same location

    TECHNICAL SPECIFICATIONS

    EKJ&JA - UHF PLL 50 Channel Transmitter

    RF Channels 50 frequency presets
    RF Frequency Band UHF: 512 - 541.7 MHz
    RF Frequency Stability ±0.002%
    RF Oscillation Mode Quartz locked
    RF Modulation Type Wideband FM Stereo
    RF Output Power 10mW
    Sub-harmonic < 40 dB
    Operating current 130 mA
    Operating Time 5 to 8 hours
    Operating Power Supply 3.7 V / 500mA - built-in Lithium battery
    Charging mode USB charging 5V - type C connector
    Charging time 5 hours
    Weight 0.30 Kg
    View full details
