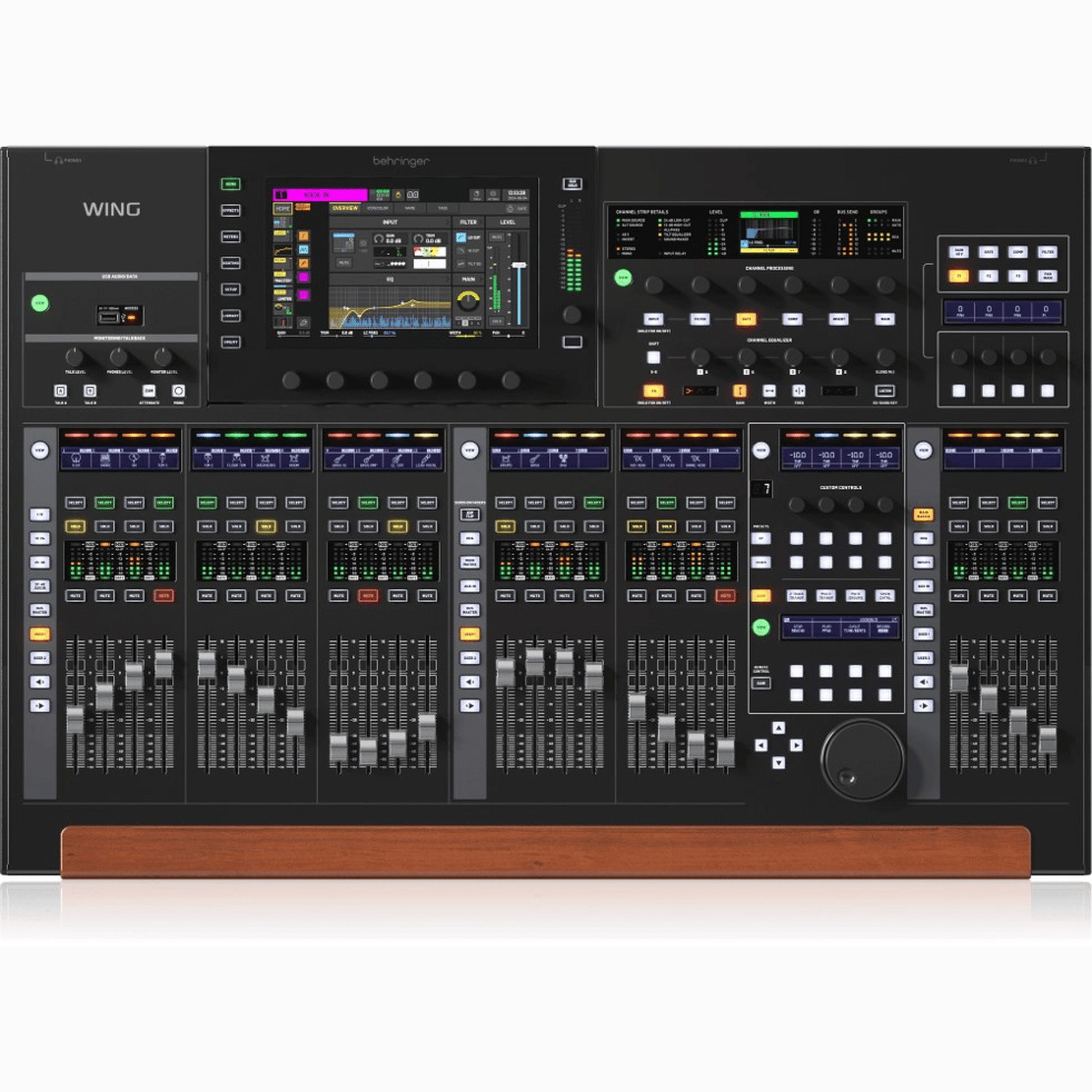

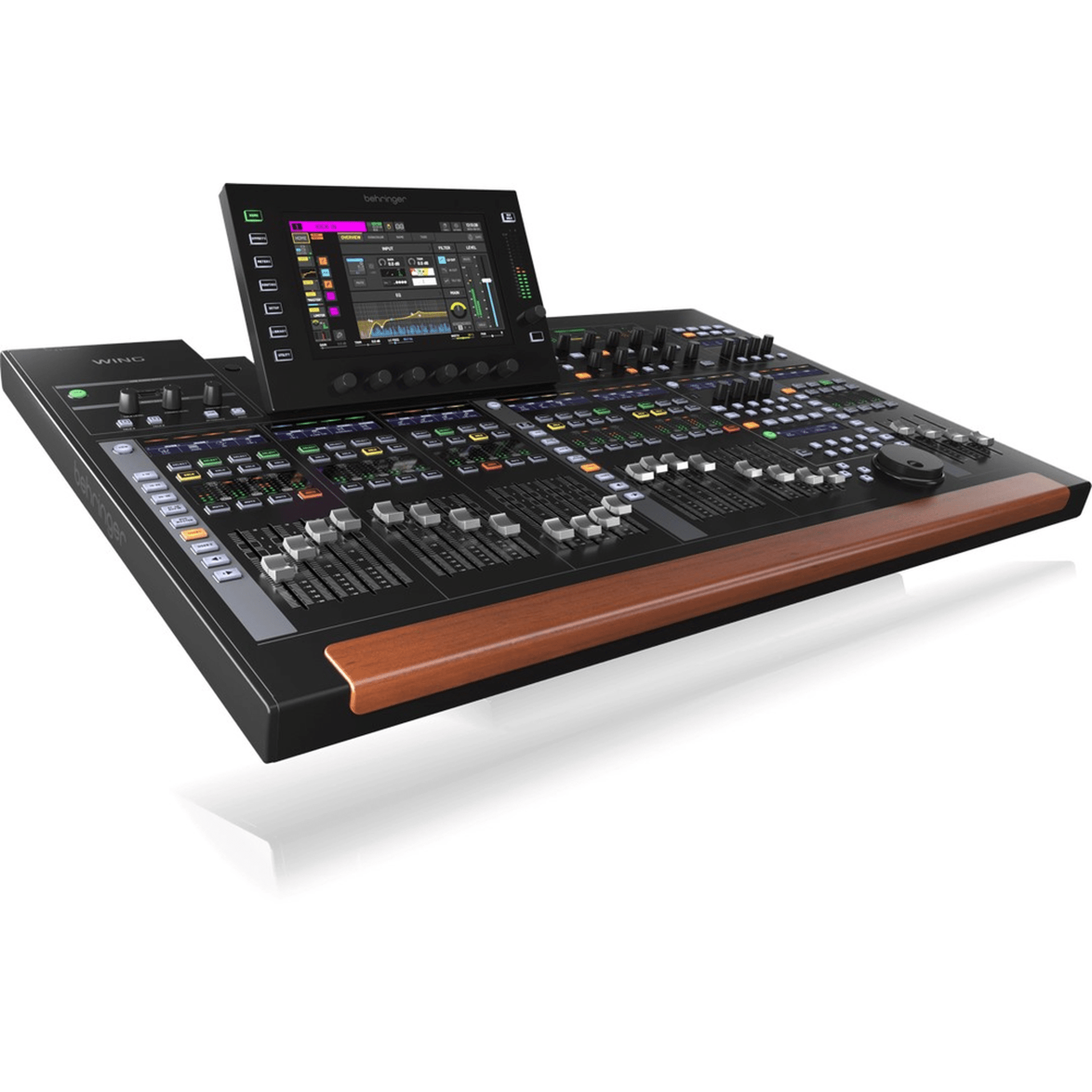

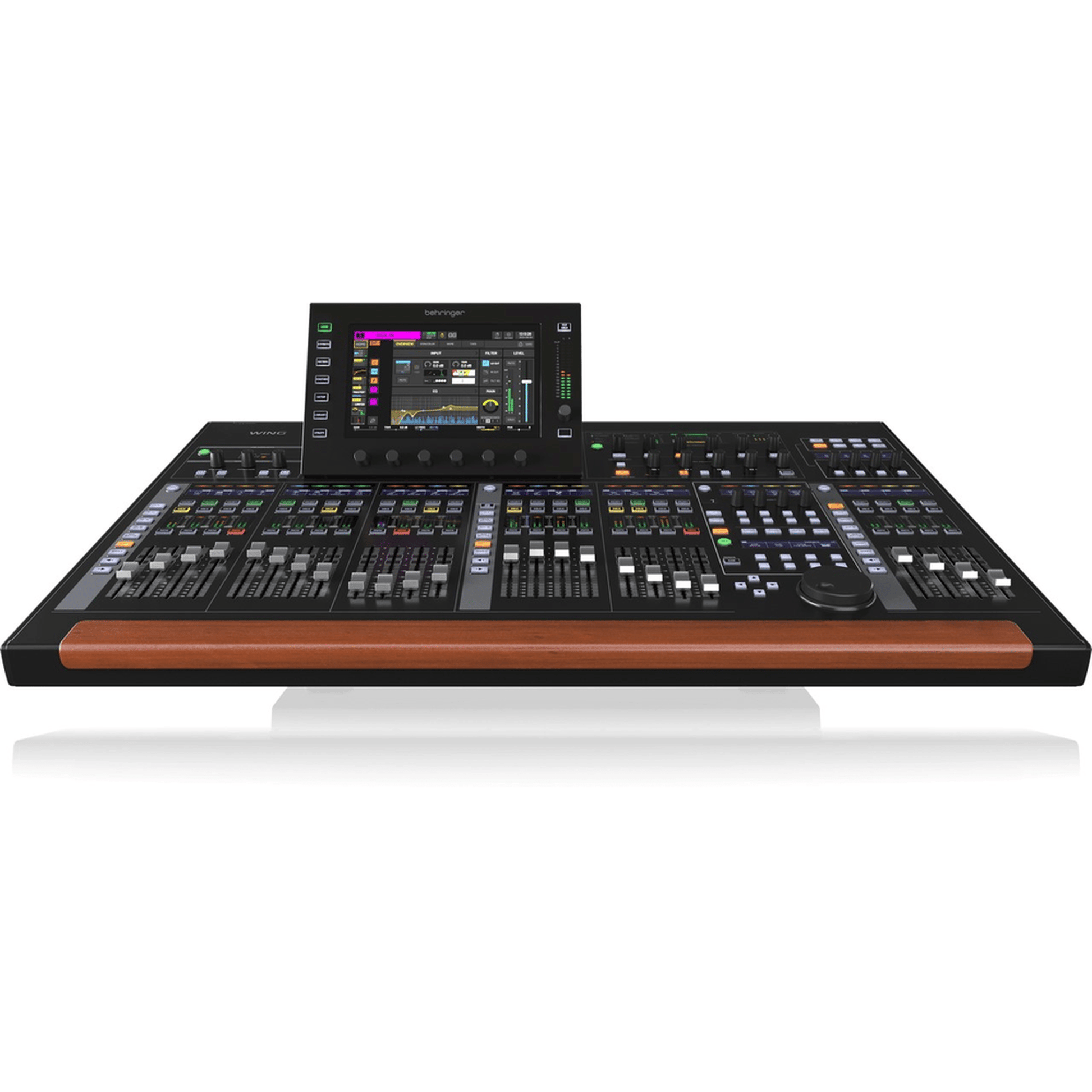

Behringer WING 48-Stereo-Channel Digital Mixing Console

The Behringer WING is a 48-stereo-channel digital mixer that’s both ultra-powerful and incredibly easy to use. Benefit from first-class hands-on control, thanks to 24 smooth-feeling motorized 100mm faders, a capacitive touchscreen, adjustable display wheel, and touch-sensitive rotary controls. Capture sound with the utmost in quality, courtesy of eight MIDAS Pro mic preamps, while a bevy of digital I/O options provide near-limitless connectivity. Record up to 64 channels directly to dual-SD cards, use optional expansion cards to attain Dante support, or deploy the WING’s built-in 48-in/48-out USB audio interface to record straight to your DAW. Getting around the WING is a breeze, thanks to its intuitive Sources, which put the emphasis on your source audio rather than the nuts and bolts of your mix. Complete with 16 true-stereo processors with standard and classic modelled effects, the WING is a top-shelf digital console that will elevate your live sound capabilities.

Save and recall precise FX parameters, specific channel settings, console settings, or entire shows. Whether you're working on a complex live performance or a musical theatre project, WING offers an extremely comprehensive toolkit for recalling and triggering all elements of your show instantaneously, with the granularity you need. WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor, Gate, Focusrite ISA and D3, DBX160, LA-2A, 1176, Elysia mPressor, and Empirical Labs Distressor. No external gear is required. WING boasts double the effect engines and insert points compared to the X32 and utilizes 40-bit internal processing algorithms, providing greater accuracy and an expanded dynamic range.

The WING LIVE card comes pre-installed and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a pre-recorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance. You can easily change the WING LIVE card for a WING DANTE card, enabling full 64x64 channel Dante networking connectivity.

Transfer 32 channels of 44.1kHz/48kHz and 24-bit audio to and from I/O interfaces, hubs, personal monitoring mixers, and more using just one XLR/DMX cable. Need assistance with calculating cable lengths? Try the StageConnect Configurator app. Use a standard XLR mic cable for short connection, like connecting your side rack or internal rack connections. Using a regular 3-pin XLR DMX cable allows for long cable runs of over 30 m (100 feet). The StageConnect Configurator app helps to calculate channel count, power requirements, and cable lengths for StageConnect setups.

• 8 Midas PRO mic preamps and outputs provide industryreference sound quality
• 24 motorized 100 mm faders in 3 separate, fully configurable sections
• 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
• 10.1 inch main display with multi-touch screen and adjustable swivel
