The Engine of Consistency: Inside the Design and Engineering of Yamaha Acoustic Guitars

In the global landscape of acoustic luthiers, the word "consistency" is often tossed around as a marketing buzzword. Yet, if you walk into any guitar repair shop, recording studio, or school music room, you will quickly discover that one name commands absolute respect for its mechanical predictability and acoustic integrity: Yamaha.

While vintage purists romanticise the temperamental nature of early twentieth-century American flat-tops, Yamaha approached acoustic guitar manufacturing with an entirely different philosophy: a seamless marriage of rigorous Japanese engineering, structural physics, and master-level lutherie (Custom Shop artistry).

From their legendary 1966 "Red Label" FG series to modern acoustic-electric performance instruments, Yamaha has mastered the art of scalable quality. As a guitar specialist who has spent decades analysing wood acoustics, adjusting neck relief, and performing setups, I have seen first hand how these instruments are put together. Let us pull back the soundboard and examine the history, timber metallurgy, structural bracing, and maintenance protocols that define the Yamaha acoustic experience.

The Lineage: From Nippon Gakki to the World Stage

Yamaha's journey into the acoustic guitar world began in 1966 at their historic Nippon Gakki factory in Hamamatsu, Japan. Recognising that the acoustic market was split between expensive Western imports and unplayable local alternatives, Yamaha launched the FG180 and FG150 dreadnoughts.

Dubbed the "Red Label" guitars due to the vibrant red manufacturer's tag visible inside the soundhole, these instruments fundamentally shifted the market. They were incredibly affordable, practically indestructible, and possessed a loud, punchy projection that caught the attention of artists worldwide, most famously showcased by Country Joe McDonald at the 1969 Woodstock Festival.

Nippon Gakki Workshop (1966) ──► Red Label FG Series ──► Modern L & TransAcoustic Era (Present)

Over the following decades, Yamaha expanded its operations, establishing dedicated high-end workshops where master luthiers could push the boundaries of acoustic design. This gave birth to the L Series (Luxury), the performance-driven A Series, and the ground-breaking TransAcoustic line. Today, whether a Yamaha is crafted by hand in their elite Japanese custom shop or built on their precision production lines in Taiwan or China, the foundational blueprint remains identical: uncompromising structural stability.

The Yamaha Tonewood Vault and A.R.E. Technology

The voice of a Yamaha acoustic is sculpted by a rigorous selection of tonewoods and a proprietary piece of hydrothermal wood engineering known as A.R.E. (Acoustic Resonance Enhancement).

The Acoustic Resonance Enhancement Revolution

One of the greatest challenges in acoustic manufacturing is that new wood sounds, well, new. It can be stiff, holding onto moisture and resins that dampen acoustic vibrations. Over decades of playing, these resins crystallise, and the wood fibres loosen up, which is why a vintage 1930s acoustic has a deep, open, and responsive voice.

Yamaha’s solution is the A.R.E. process, a precise hydro-thermal torrefaction technique. By manipulating atmospheric pressure, temperature, and humidity in a highly controlled chamber, Yamaha structurally ages the wood cells at a molecular level without using chemical additives.

The result is a brand-new solid spruce top that vibrates with the immediate responsiveness, high-frequency smoothness, and low-end warmth of an instrument that has been played for forty years.

Tonewood Selection and Frequency Profiles

• Solid Engelmann Spruce: Used extensively on the high-end L Series (such as the LL16 or LS26), Engelmann Spruce is softer and less dense than Sitka Spruce. When treated with A.R.E., it yields a wide, rich mid-range tone and incredible touch sensitivity, making it the ultimate top wood for delicate fingerstyle players.
• Solid Sitka Spruce: The benchmark soundboard timber for the A Series and higher-end FG models. Sitka Spruce is exceptionally rigid, offering immense dynamic headroom. It can handle aggressive flatpicking or heavy rock strumming without the acoustic tone compressing or distorting.
• Indian Rosewood vs. Genuine Mahogany: Yamaha utilizes dense Indian Rosewood on models like the LL16R to provide a "scooped" tonal profile, deep, thumping lows and crystalline, sparkling highs. For their mahogany variants (e.g., the LL16M or AC3M), they focus the energy on a punchy, mid-forward growl that cuts cleanly through a studio vocal mix.

Architecture and Aesthetics: Forms Designed for Purpose

Yamaha does not believe in superficial, ornate decorations that add weight to the guitar. Their aesthetic philosophy is deeply rooted in minimalist Japanese elegance, prioritising clean lines, functional bindings, and acoustic geometry.

Body Shapes Explained

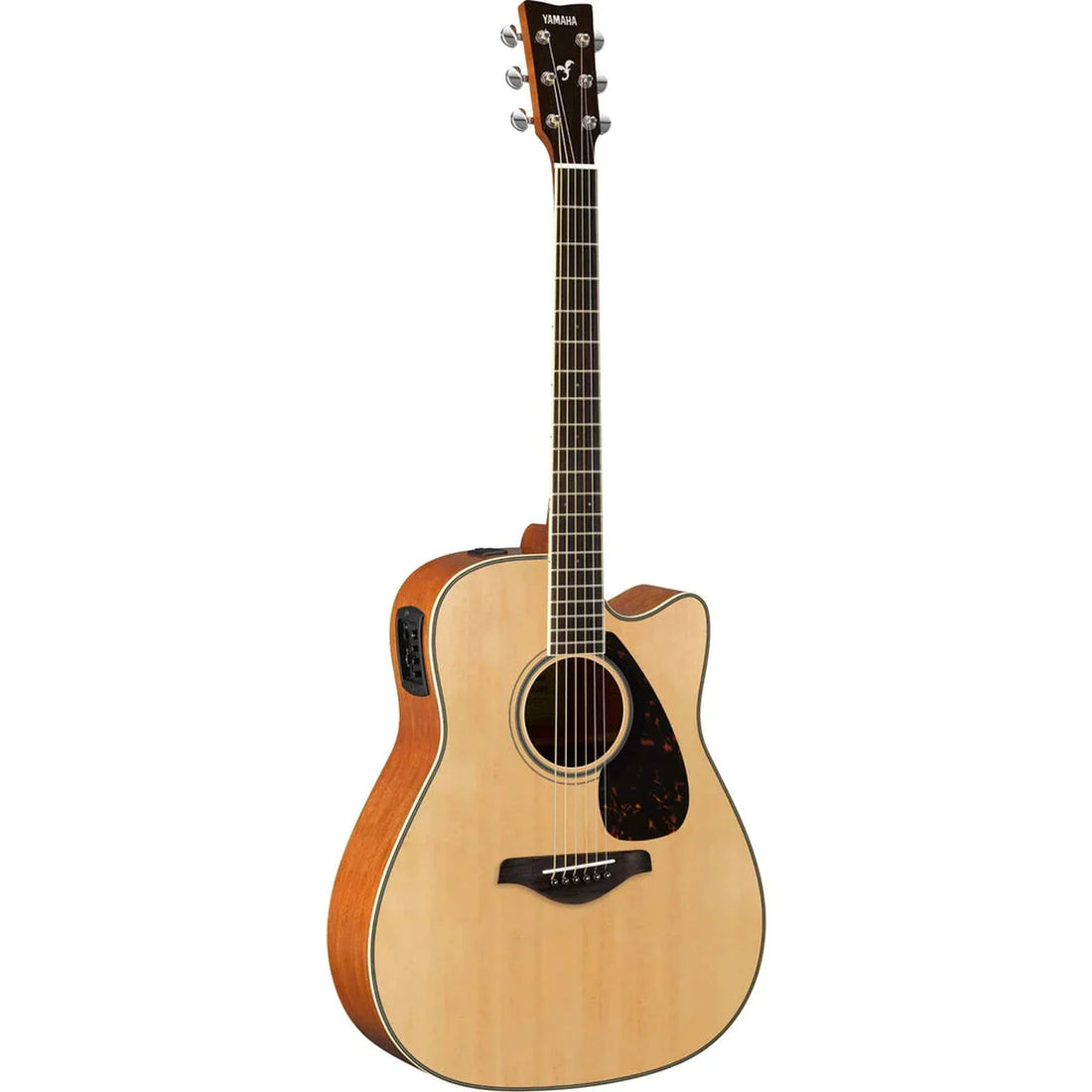

1. Traditional Western (LL / FG): Yamaha's take on the classic dreadnought shape. The LL features a slightly wider shoulder and a deeper body cavity than a standard dreadnought, shifting the acoustic balance to minimize unruly low-end mud while emphasising clear, punchy bass and immense volume.
2. Concert / Small Body (LS / FS): These shapes feature a tighter waist and a shallower body profile. They act as natural acoustic compressors, focusing the mid-range frequencies and offering an exceptionally balanced string-to-string separation perfect for intricate acoustic arrangements or tracking in a recording studio.
3. Medium Jumbo (LJ / AC): Designed explicitly for the modern stage performer, offering an ergonomic midpoint that provides comfortable arm resting while maintaining a wide dynamic range.

Playability and Ergonomics: The Modern Neck Contour

Acoustic guitars can be notoriously punishing on the left hand if the neck geometry is poorly designed. Yamaha addresses this by utilising a highly refined Straight Taper Neck Profile across their modern A and L series lines.

Unlike vintage necks that grow significantly thicker as you move up toward the body, Yamaha maintains a slim, uniform thickness profile. The fingerboard edges are also slightly rolled by hand during final assembly, removing any sharp wood or metal fret corners.

Furthermore, Yamaha optimises the string spacing and action parameters, lowering the nut slots slightly from the factory to ensure that forming an F-major barre chord at the first fret requires minimal physical effort, a detail highly appreciated by both beginners and touring professionals.

The Specialist's Bench: Preferred Setup Metrics

To ensure your Yamaha acoustic handles beautifully while maintaining maximum acoustic sustain and zero fret buzz, I target these exact luthier benchmarks during setup adjustments:

• Neck Relief: Yamaha installs a robust steel truss rod accessible via the soundhole. Adjust the rod using a 5mm Allen key until the neck is nearly straight, aiming for a minimal relief gap of 0.005 to 0.007 inches at the 7th fret.
• Action Height at the 12th Fret: Because Yamaha soundboards are designed to be driven firmly, setting the action too low will choke the dynamic headroom. Target a string height of 2.0mm on the treble High E string and 2.5mm on the bass Low E string.
• Saddle Uniformity: Yamaha uses premium urea or real bone saddles. If you need to lower the action, the saddle must be unseated from the bridge and sanded perfectly flat across its base. Any tilt or curve will ruin the contact with the under-saddle pickup elements, leading to uneven string volumes when amplified.

Amplification Breakthroughs: Atmosfeel and TransAcoustic Technology

For many specialists, Yamaha's greatest modern achievements lie in their revolutionary approaches to acoustic amplification.

The Atmosfeel 3-Way Pickup System

Standard acoustic pickups often sound thin, plastic, or brittle when plugged into a large PA system. Yamaha’s flagship Atmosfeel system, found on modern Red Label and A-Series models, completely solves this by blending three independent capture sources:

1. Under-Saddle Piezo Elements: Captures immediate low-frequency string energy and fundamental punch.
2. Contact Sheet Sensor: Fixed beneath the bridge inside the body, this sensor captures the true physical vibration of the wooden soundboard, adding mid-range warmth and percussive body taps.
3. Internal Condenser Microphone: Suspended inside the upper bout, the mic captures the airy, organic acoustic environment of the interior.

A simple mix control allows you to blend the microphone into the piezo signal, giving you a natural tone on loud concert stages without introducing howling feedback loops.

The TransAcoustic (TA) Magic

Perhaps the most stunning piece of acoustic technology is the Yamaha TransAcoustic series. These guitars allow you to use digital Reverb and Chorus effects without plugging into an amplifier or pedal.

Yamaha installs a small mechanical component called an Actuator on the inner surface of the guitar’s back wood. When you strum a string, the actuator receives the electrical signal from the pickup and physically vibrates the back of the guitar in sympathy.

The wooden body cavity itself acts as an acoustic speaker cone, projecting lush, spatial effects directly out of the soundhole along with the natural acoustic voice of the timber.

Instructions for General Maintenance and Care

• Humidity Management: Solid spruce soundboards are living materials that expand and contract based on moisture levels. Maintain a strict relative humidity level between 45% and 55%. If the wood dries out due to artificial heating or dry winter climates, the top will sink, causing severe string buzzing and sharp fret ends. Always store your Yamaha inside its hardshell case with a soundhole humidification pack when you are not playing.
• Cleaning Gloss vs. Satin Finishes: Clean high-gloss nitrocellulose or polyurethane models using a dedicated non-abrasive guitar detailer spray and a clean microfiber cloth. For matte or open-pore models (like the FG5), never use heavy waxes or silicone furniture polishes, as they will clog the open pores and leave uneven, greasy shiny spots. Wipe down satin bodies using a completely dry microfiber cloth.
• Fretboard Rehydration: Twice a year, clean the fretboard to remove accumulated oils and grime. Apply a few drops of high-grade hydrated lemon oil to a cloth, rub it into the wood grain, let it sit for sixty seconds, and then completely buff it dry.

Key Features Section

Design Framework and Specifications

Frequently Asked Questions (FAQ)

1. What is the main difference between Yamaha FG and FS models?

The FG series features Yamaha's Traditional Western body shape (similar to a large dreadnought), emphasising powerful projection and deep bass response. The FS series features a smaller, concert-style body with a tighter waist and shorter scale length, making it more physically manageable and tonally focused for fingerstyle playing.

2. How does TransAcoustic technology work without batteries draining instantly?

The TransAcoustic actuator system is highly efficient, running on two standard AA batteries housed in an integrated battery box/endpin jack assembly. This provides double the energy density of standard 9-volt circuits, yielding up to 30 hours of continuous effect playback before needing a swap.

3. Why do the strings on my new Yamaha acoustic feel stiffer than my electric guitar?

Acoustic guitars require heavier string gauges (typically 12-53) and a longer 25.6-inch scale length to physically drive the solid wooden top into vibrating and projecting sound. Electric guitars use lighter strings and lower tensions because they rely entirely on magnetic pickups for volume.

4. Can I safely install medium gauge (.013-.056) strings on a Yamaha FG800?

Yes. Yamaha’s standard internal X-bracing is exceptionally robust and engineered to handle the increased tension of medium-gauge strings. However, installing heavier strings will raise the action slightly, so you may need to adjust the truss rod to maintain optimum playability.

5. Where are Yamaha acoustic guitars manufactured?

Yamaha splits production across three highly monitored facilities: their elite custom shop in Hamamatsu, Japan (handling the flagship STAR and elite L series models), and their state-of-the-art, proprietary factories in China and Taiwan (producing the intermediate A series, TA series, and entry-level FG/FS lines) under strict Japanese quality control oversight.

Final Specialist Verdict

A Yamaha acoustic guitar is a masterclass in functional, high-performance manufacturing. By matching advanced scientific workflows like molecular A.R.E. wood aging and Atmosfeel multi-source pickup blending with time-honoured Japanese luthier discipline, they have built an industry standard for reliability. Protect your solid soundboard from harsh climate dry spells, keep the nut slots clean, and your Yamaha will reward you with an increasingly rich, expressive, and deeply resonant acoustic performance for a lifetime.
