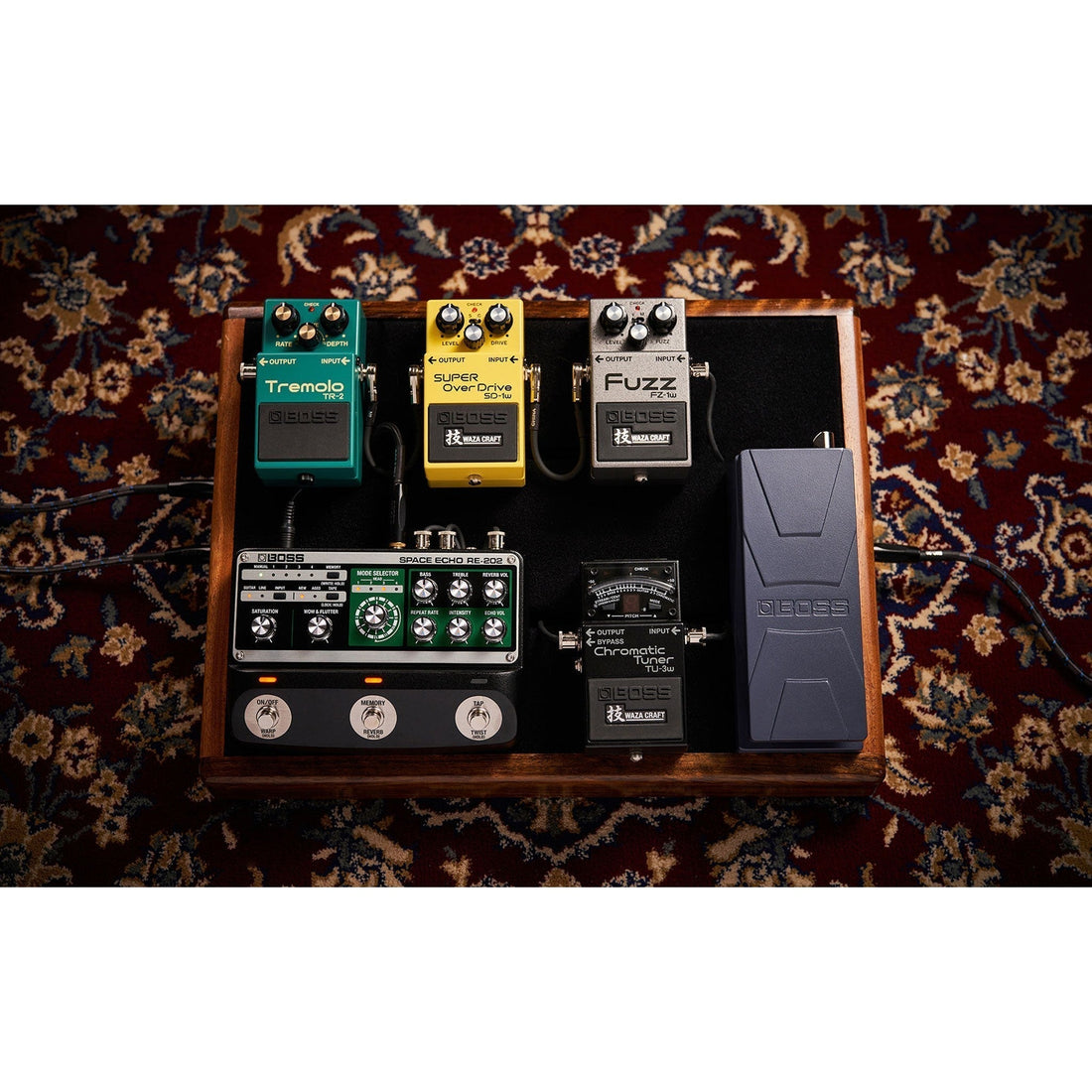

How Electric Guitar Effects Pedals Work: Sonic Alchemy

Electric guitar effects pedals are the sonic tools that shape, colour, and transform the raw sound of an electric guitar, allowing musicians to unlock an extraordinary variety of tones. From subtle enhancements to dramatic sound manipulation, these compact devices are plugged in between the guitar and the amplifier, manipulating the electrical signal to produce a vast array of sounds.

Understanding how these "stompboxes" work is key to harnessing their creative potential, enabling guitarists to sculpt their unique voice. This article, developed by Joondalup Music Centre in Perth, delves into the fascinating world of electric guitar effects pedals, exploring their operational principles, various types, popular brands and models, factors influencing sound quality, essential maintenance practices, and associated costs for players at all levels.

How They Work: Manipulating the Electrical Signal

At their core, electric guitar effects pedals are miniature electronic circuits designed to modify the guitar's analogue audio signal. When a guitar string vibrates, it creates a tiny electrical current in the pickups. This current travels through the guitar cable to the pedal. Inside the pedal, this electrical signal passes through a series of components (resistors, capacitors, transistors, integrated circuits, digital signal processors) that are arranged to perform specific operations, altering the signal before it proceeds to the amplifier.

The process typically involves:

1. Input Buffer: The signal first hits an input buffer, which helps to maintain the signal's strength and clarity as it enters the pedal, preventing "tone suck" or impedance issues.

2. Effect Circuitry: This is where the magic happens. The specific arrangement of electronic components or the execution of digital algorithms manipulates the incoming signal according to the pedal's intended effect. This could involve:

• Clipping/Distortion: Overloading components to intentionally create harmonic distortion.

• Filtering: Cutting or boosting specific frequencies.

• Time-Based Processing: Creating delays or echoes by storing and replaying portions of the signal.

• Modulation: Altering parameters of the sound (like pitch or volume) rhythmically.

• Dynamic Processing: Changing the signal's volume or compression.

3. Output Buffer: After processing, an output buffer typically ensures the modified signal leaves the pedal strong and clear, ready for the amplifier or the next pedal in the chain.

4. Bypass: All pedals have a bypass switch (the "stompbox" part). When the effect is off, the signal either passes through the pedal's internal circuit without modification (buffered bypass) or completely bypasses it, connecting the input directly to the output (true bypass).

Modern pedals often combine analogue circuitry with digital signal processing (DSP) for more complex and versatile effects, allowing for precise control, preset storage, and sophisticated algorithms.

Various Types of Effects

Guitar effects pedals can be broadly categorised by the type of sonic manipulation they perform:

1. Gain/Overdrive/Distortion/Fuzz: These pedals add harmonic richness and sustain by clipping the guitar signal.

• Overdrive: Mimics the sound of a tube amplifier pushed to its limits, offering a smooth, natural break-up (e.g., Ibanez Tube Screamer).

• Distortion: Produces a more aggressive, saturated, and compressed sound, often with more sustain (e.g., BOSS DS-1).

• Fuzz: Creates a thick, sometimes spluttering, heavily clipped sound, reminiscent of early rock and psychedelic music (e.g., Electro-Harmonix Big Muff Pi).

2. Modulation Effects: These pedals alter the pitch, phase, or amplitude of the signal in a rhythmic or cyclical way.

• Chorus: Creates a thick, shimmering sound by slightly detuning and delaying a copy of the original signal (e.g., BOSS CE-2W Chorus).

• Flanger: Produces a sweeping, "jet plane" like sound by combining the original signal with a slightly delayed, phase-shifted copy.

• Phaser: Creates a swirling, psychedelic sound by splitting the signal and shifting its phase (e.g., MXR Phase 90).

• Tremolo: Modulates the volume of the signal, creating a pulsating effect.

• Vibrato: Modulates the pitch of the signal, creating a wavering effect.

3. Time-Based Effects: These pedals manipulate the time domain of the signal, creating echoes or reflections.

• Delay: Creates distinct echoes of the original signal (e.g., BOSS DD-8 Digital Delay, Strymon El Capistan).

• Reverb: Simulates the natural reflections of sound in different acoustic spaces, adding ambience and depth (e.g., Electro-Harmonix Holy Grail, Strymon BigSky).

• Looper: Records and plays back short phrases or loops of guitar, allowing for multi-layered performances (e.g., BOSS RC-5 Loop Station).

4. Dynamics Effects: These pedals alter the volume or intensity of the signal.

• Compressor: Reduces the dynamic range of the signal, making loud parts quieter and quiet parts louder, resulting in a more even and sustained sound (e.g., MXR Dyna Comp).

• Wah: A foot-controlled filter that sweeps across frequencies, creating a vocal-like "wah" sound (e.g., Dunlop Cry Baby).

• Volume Pedal: A foot-controlled pedal for manually increasing or decreasing the volume.

5. Pitch Effects: These pedals change the pitch of the guitar signal.

• Octaver/Pitch Shifter: Adds notes an octave (or other intervals) above or below the original note (e.g., Electro-Harmonix POG2).

Popular Brands & Models

The effects pedal market is vast and diverse, with brands catering to various budgets and sonic preferences.

Beginner Level:

• BOSS: The industry standard for durable, reliable, and user-friendly pedals. Models like the DS-1 Distortion, SD-1 Super Overdrive, and DD-3T Digital Delay are affordable entry points.

• Behringer: Known for extremely affordable "clones" of classic pedals, offering budget-conscious beginners a way to experiment with various effects (e.g., TO800 Vintage Tube Overdrive).

• Electro-Harmonix (EHX) (Mini Series): Offers compact, simplified versions of their classic effects at a lower price point, such as the Nano Big Muff Pi or Memory Toy Delay.

Intermediate Level:

• Ibanez Tube Screamer (TS9/TS808): A legendary overdrive pedal, iconic for its mid-hump and smooth tone. A staple for blues, rock, and jazz guitarists.

• MXR: Known for robust, high-quality, and often compact pedals (e.g., Phase 90, Dyna Comp, Carbon Copy Analog Delay).

• Electro-Harmonix (Standard Series): Offers a wider range of classic and innovative effects (e.g., Holy Grail Reverb, Small Clone Chorus).

• TC Electronic (Compact Pedals): Provide excellent digital effects with quality algorithms at competitive prices (e.g., Flashback Delay, Hall of Fame Reverb).

Professional Level:

• Earthquaker: Renowned for high-fidelity, studio-quality digital effects pedals, particularly their time-based and modulation effects (e.g., Hoof V2 Fuzz, Hoof Reaper V2 Fuzz, Ghost Echo Reverb V3). Known for pristine sound and extensive control.

• Eventide: Offers incredibly powerful and versatile multi-effects processors and individual pedals (e.g., H9 Max, Space Reverb), often used by experimental and professional musicians.

• Analog Man: Boutique builder famous for highly sought-after, hand-wired analogue pedals, particularly their overdrives and fuzzes (e.g., King of Tone).

• Universal Audio (UAFX Series): Recreates classic amplifier and effect tones with exceptional realism using powerful DSP (e.g., Golden Reverberator, Starlight Echo Station).

• Origin Effects: Known for premium, studio-grade compressors and drives that offer exceptional transparency and tone shaping (e.g., Cali76 Compressor, RevivalDRIVE).

Sound Quality

The sound quality of an effects pedal is subjective but generally refers to its fidelity, transparency, and the musicality of the effect it produces.

• Fidelity: How accurately the pedal processes the signal without introducing unwanted noise, hum, or signal degradation when active or in bypass.

• Transparency: How much the pedal alters the core tone of the guitar and amplifier. Some pedals are designed to be transparent (e.g., a clean boost), while others are designed to dramatically change the sound.

• Musicality of Effect: Does the effect itself sound pleasing and inspiring? For example, is a delay warm and analogue-like, or is it crisp and pristine? Does a distortion retain the guitar's character, or does it sound fizzy and artificial?

• Dynamic Response: How well the pedal responds to the player's touch and guitar's volume knob. High-quality pedals often retain excellent dynamic range.

• Analogue vs. Digital: Analogue pedals (often older designs) use discrete electronic components to create the effect, typically revered for their warmth, organic feel, and unique imperfections. Digital pedals use DSP to emulate effects or create entirely new ones, offering greater versatility, precision, and the ability to save presets. Many modern pedals combine both.

Maintenance

Effects pedals are generally robust, but proper maintenance ensures their longevity and reliable performance.

• Power Supply: Always use the correct power supply (voltage and current) as specified by the manufacturer. Incorrect power can damage the pedal. Use isolated power supplies for pedalboards to minimise noise.

• Cable Care: Use good quality patch cables (short cables connecting pedals) and instrument cables. Faulty cables are a common source of signal loss and noise.

• Cleanliness: Keep pedals free from dust and spills. Wipe them down with a soft, dry cloth. Avoid spraying liquids directly onto controls.

• Footswitch Care: Avoid stomping excessively hard on footswitches. If they become intermittent, it might be due to dirt or wear, which may require professional servicing.

• Battery Life: If using batteries, remove them if the pedal will not be used for extended periods to prevent leakage and corrosion.

• Firmware Updates: For modern digital pedals, regularly check the manufacturer's website for firmware updates. These can add new features or fix bugs.

• Storage: Store pedals in a pedalboard or protective case when not in use, especially for gigging musicians, to prevent physical damage.

• Professional Servicing: For major issues (e.g., circuit failure, persistent noise), consult a qualified electronics technician or the pedal manufacturer.

Costs

The cost of electric guitar effects pedals varies wildly depending on the type of effect, brand reputation, build quality, and whether it's analogue or digital, mass-produced or boutique.

Beginner Level:

• $20 - $80: This range includes basic, mass-produced pedals, often digital or simpler analogue circuits. Brands like Behringer or some entry-level BOSS or Donner pedals fall into this bracket. They are excellent for experimenting with different effects without a large investment.

Intermediate Level:

• $80 - $250: This is where many classic and popular pedals reside. You'll find durable, reliable pedals from brands like BOSS, MXR, Ibanez (Tube Screamer), Electro-Harmonix, and TC Electronic. These offer significantly better sound quality, durability, and features than beginner pedals.

Professional Level:

• $250 - $700+ (per pedal): This segment includes high-end digital multi-effects units, boutique analogue pedals, and complex, feature-rich digital workstations. Brands like Strymon, Eventide, Origin Effects, Analog Man, and Universal Audio are in this category. These pedals offer pristine sound quality, extensive control, premium components, and often unique sonic capabilities, justifying their higher price tag for studio professionals and touring musicians.

Consider also the cost of a power supply unit (PSU, $50-$200+ for isolated units), a pedalboard ($50-$300+), and patch cables ($5-$15 per cable).

Key Features of Electric Guitar Effects Pedals

1. True Bypass vs. Buffered Bypass:

• True Bypass: When the effect is off, the signal completely bypasses the pedal's circuitry, maintaining the purest signal path but can lead to signal degradation over long cable runs or with many pedals.

• Buffered Bypass: The signal always passes through a buffer circuit, maintaining signal strength and preventing tone loss over long chains, but some argue it subtly colours the tone even when off.

2. Analogue vs. Digital Circuitry:

• Analogue: Uses physical electronic components (resistors, capacitors, transistors) to process the signal, often revered for warmth, organic feel, and unique character.

• Digital: Uses a Digital Signal Processor (DSP) chip to convert the analogue signal to digital, apply algorithms, and convert it back to analogue. Offers greater precision, versatility, presets, and complex effects.

3. Power Requirements (mA, Voltage): Essential for compatibility with power supplies. Pedals require specific voltage (usually 9V DC) and current (mA) to operate correctly. Incorrect power can damage the unit.

4. Controls (Knobs, Switches): The physical interface for shaping the effect. Higher-end or more complex pedals often have more nuanced controls, sometimes with secondary functions or digital displays.

5. Expression Pedal Input: Allows for real-time control over parameters (e.g., wah sweep, delay feedback) using a separate foot pedal, enhancing expressive capabilities.

6. MIDI/USB Connectivity: Found on modern digital pedals, enabling control via MIDI controllers, integration with DAWs (Digital Audio Workstations), firmware updates, and deep parameter editing via computer software.

FAQ Section

Q: What is a "pedal chain" and does the order matter?

A: A pedal chain is the sequence in which you connect your effects pedals between your guitar and amplifier. Yes, the order matters significantly, as the output of one pedal becomes the input of the next. A common order is: Wah/Compressor -> Overdrive/Distortion/Fuzz -> Modulation (Chorus, Flanger, Phaser) -> Time-Based (Delay, Reverb) -> Looper. Experimentation is key to finding your desired sound.

Q: Do I need a special power supply for my pedals?

A: While some pedals can run on batteries, a dedicated power supply unit (PSU) is highly recommended for multiple pedals. An isolated PSU is best, as it provides individual power to each pedal, reducing noise and hum caused by ground loops, leading to a cleaner overall sound.

Q: Can I use electric guitar pedals with an acoustic guitar or bass guitar?

A: Yes, many pedals can be used with acoustic or bass guitars, but results vary. Overdrives/distortions might not sound good with acoustics due to feedback. Bass-specific pedals are designed to handle lower frequencies better. Time-based effects (delay, reverb) and modulation effects (chorus, tremolo) often work well with both acoustic and bass guitars.

Q: What's the difference between an overdrive and a distortion pedal?

A: Overdrive pedals typically aim to emulate the natural "break-up" of a tube amplifier, offering a smoother, warmer, and less compressed gain. Distortion pedals provide a more aggressive, saturated, and compressed sound with higher gain levels, often leading to a more sustained and heavier tone.

Q: How do I know if my pedal is a true bypass or buffered bypass?

A: Check the manufacturer's specifications. Most modern pedals clearly state their bypass type. You can sometimes tell by connecting the pedal with no power; if the signal still passes through clearly, it's likely a true bypass. If there's no signal or it's very weak without power, it's likely buffered. Both have pros and cons depending on your setup.
