For the acoustic guitarist, the amplified sound must preserve the instrument's authentic tone, natural resonance, and dynamic nuance. Unlike electric guitar amplifiers, which are designed to colour and shape the signal, the acoustic combo amplifier is engineered for transparency and fidelity.
It serves as a miniature, personal public address (PA) system, amplifying the guitar's voice and often the musician's vocals without distortion or unwanted frequency boosts. Combining the amplifier, speaker, and sometimes a mixer into a single unit, the acoustic combo amp is the indispensable hub for practice, studio recording, and live performance.
This article provides a comprehensive guide to these essential tools, delving into their construction, a detailed comparison of market-leading brands, and the essential considerations for sound quality and maintenance.
Construction Materials: The Pursuit of Transparency
The physical build of an acoustic amplifier is critical to its performance, as every component must minimise unwanted coloration and resonance.
- Cabinet: Unlike electric amps which favour pine or birch plywood for tonal coloration, acoustic amp cabinets often use high-density plywood or MDF (Medium-Density Fibreboard). The primary goal is a stiff, inert enclosure to prevent cabinet resonance from interfering with the speaker's true output. Cabinets are designed to be acoustically transparent, ensuring a clear and uncoloured sound.
- Speakers: The speakers in an acoustic combo are fundamentally different from those in an electric amplifier. They are typically full-range speakers or a two-way system (woofer and tweeter) designed for a flat frequency response, akin to a studio monitor or PA speaker. This ensures that the deep bass of the guitar's body and the crisp treble of the strings are reproduced accurately. High-end brands like AER often use bespoke, high-efficiency twin-cone speakers to achieve exceptional clarity and projection from compact cabinets.
- Chassis and Covering: The internal chassis is usually made from aluminium or steel to protect the solid-state components. The exterior is often covered in durable vinyl or felt-like carpeting, prioritising road-worthiness and protection over aesthetic 'tweed' or 'tolex' coverings often found on electric amps.
Brand Comparison: Price, Capabilities, and Sound
The acoustic amp market offers a clear delineation between budget-conscious, feature-rich options and high-end, professional fidelity tools. The comparison of NU-X, Fender, TC Helicon, and AER highlights these differences:
Brand |
Price Range (AU Est.) |
Core Capability & Focus |
Sound Quality & Tone |
Premium/High-End ($800–$3,500+) |
Absolute Fidelity. Focus on transparency, portability, and studio-quality sound. |
Known for pristine, uncoloured sound. Ultra-clear high-end, immense headroom, and exceptional projection for their size. |
|
Mid-Range/High-End ($400–$1,000) |
Vocal Processing Integration. Dedicated focus on vocal effects (harmony, pitch correction) alongside guitar tone. |
Rich, full sound with specialised processing. BodyRez technology for improving piezo pickup tone. Optimised for singer-songwriters. |
|
Mid-Range ($250–$600) |
Versatility and Aesthetics. Clear, natural tone with classic look. Excellent blend of digital effects and traditional controls. |
Warm, clean, and natural Fender tone. Wide, multi-speaker sound projection (e.g., Acoustic SFX models). |
|
Budget/Low-Mid Range ($200–$500) |
High Feature-Set and Portability. Offers battery power, Bluetooth, drum machine, and IR (Impulse Response) modelling at a competitive price. |
Excellent value for money. Tone often includes digital modelling to enhance the sound, offering good transparency for the price point. |
Maintenance: All listed brands primarily use solid-state Class D or similar digital amplifier circuitry, which requires minimal maintenance (no valves to replace). High-end AER and TC Helicon amps are typically built with higher-tolerance components, leading to greater long-term reliability. NU-X and Fender require standard care, while NU-X’s rechargeable battery models require careful battery management to maximize lifespan.
Sound Quality: The Goal of Uncoloured Amplification
For acoustic amplification, "sound quality" is synonymous with transparency and fidelity. The amplifier should not impose its own tonal personality but rather serve as a clean conduit for the guitar's natural voice.
- Flat Frequency Response: Unlike electric guitar amps which typically have a mid-range focus, acoustic amps aim for a flat frequency response across the entire spectrum. This ensures that the delicate high frequencies of the strings and the percussive low frequencies of the instrument's body are amplified accurately.
- High Headroom and Low Noise: Acoustic amps require high headroom (the ability to produce loud, clean volume) to prevent clipping or distortion, especially when amplifying the sharp transients of a strummed acoustic guitar. Brands like AER are renowned for their exceptional headroom and ultra-low noise floor, which is critical for quiet, dynamic pieces.
- Anti-Feedback Circuitry: Acoustic amps must incorporate specialised features like notch filters or phase switches to combat the resonant frequencies that cause feedback when amplified. The effectiveness of these anti-feedback tools is a key measure of an amp's utility in a live setting.
The Importance of Comprehensive Inputs and Features
A modern acoustic amp is not just an amplifier; it is a compact personal mixer and effects unit, making a comprehensive feature set essential for singer-songwriters.
Key Features
- Dual Channels (Guitar/Mic): Essential for singer-songwriters, most acoustic amps feature two channels: one with a standard quarter-inch (1/4") jack for the guitar and a second XLR input for a microphone.
- Phantom Power: The XLR channel must provide phantom power (typically 48V) to power condenser microphones, which are often preferred for capturing detailed vocal and instrument sound.
- DI Output (XLR Out): A crucial professional feature, the DI (Direct Injection) output allows the signal to be sent from the amp directly to a venue's main mixing console or PA system, providing a clean, balanced signal for the house sound.
- Anti-Feedback Controls: Features like Notch Filters (a highly specific EQ for cutting resonant feedback frequencies) and Phase Switches are necessary for stable live performance.
- Onboard Effects: Quality acoustic amps include essential digital effects like reverb and delay to add depth and ambience to the instrument and vocal signals. Specialised processing like TC Helicon's BodyRez is designed to mitigate the unnatural "quack" often associated with piezo pickups.

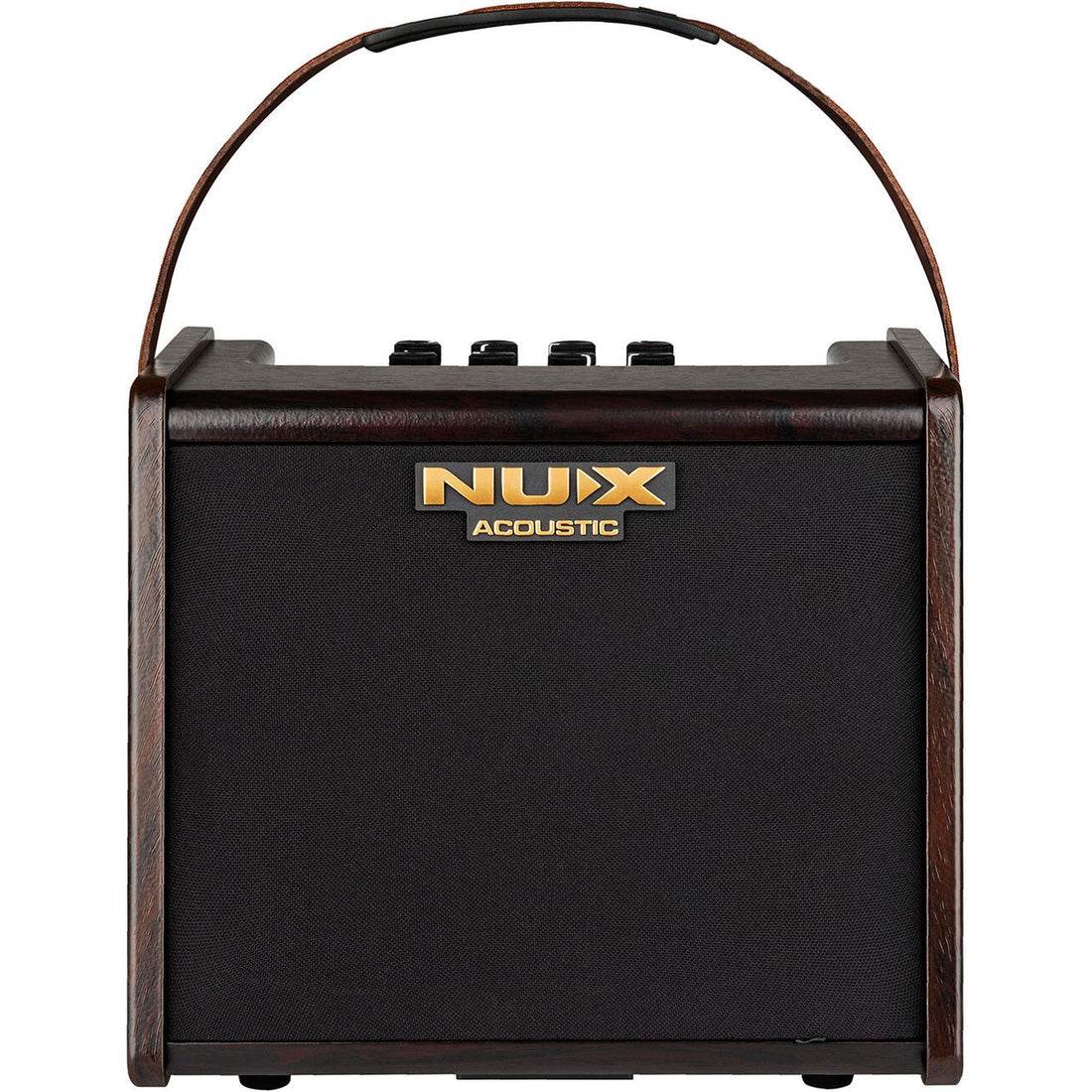

- Portability and Power: Many modern acoustic amps, such as the NU-X Stageman II, feature rechargeable battery power, allowing musicians to perform outdoors or in locations without mains electricity.
Maintenance: Solid-State Simplicity
Acoustic combo amplifiers, being almost universally solid-state, require far less specialised maintenance than traditional valve amplifiers.
- Cleaning: The primary maintenance task is regular cleaning. Dusting the grille cloth and controls with a soft cloth or compressed air is important, as dust can eventually interfere with the potentiometers and cooling vents.
- Power and Cables: Always use the manufacturer-specified power supply to prevent damage to the digital circuitry. Using high-quality instrument cables is essential, as poor cables are the most common source of signal noise.
- Storage: Store the amp in a cool, dry place and use a fitted cover to protect the speaker cone and cabinet from dust and accidental damage during transport.
Costs: Value vs. Fidelity
The cost spectrum for acoustic combo amps is wide, reflecting the quality of the signal path and the complexity of the digital features.
- Budget/Feature-Rich ($200–$400): Brands like NU-X and lower-end Fender Acoustasonic models fall here. These provide excellent value, offering dual channels, digital effects, and battery power, ideal for beginners and casual performers.
- Mid-Range/Vocal Focused ($400–$800): TC Helicon and mid-range Fender Acoustic Series models occupy this space. The price reflects higher wattage, better speaker components, and specialised digital processing for vocals and instrument tone (like pitch correction and advanced effects).
- Premium/Professional ($800–$3,500+): AER is the clear leader here (e.g., Compact 60/4, Alpha). These amps command the highest prices due to their bespoke high-fidelity speakers, exceptional portability, pristine signal-to-noise ratio, and unparalleled transparency, which meets the rigorous demands of professional touring and studio work.
FAQ Section
Q1: What is the main difference between an acoustic amp and an electric amp?
A1: An acoustic amp is designed to amplify the instrument's sound as clearly and accurately as possible (flat frequency response), much like a small PA system. An electric amp is designed to colour the sound and add harmonic distortion (overdrive) using valves or solid-state circuitry.
Q2: Why do acoustic amps need a tweeter?
A2: Acoustic guitars produce a wide frequency range, including the very high harmonics of the strings and transients. A tweeter is necessary to accurately reproduce these high frequencies, which are essential for the acoustic instrument's natural clarity and "sparkle."
Q3: Is a battery-powered acoustic amp good for small gigs?
A3: Yes, absolutely. Modern battery-powered amps, such as the NU-X Stageman II, often offer 60W–100W of power, which is more than sufficient for small acoustic gigs, coffee houses, busking, or outdoor events where mains power is unavailable.
Q4: What is the purpose of BodyRez in TC Helicon amps?
A4: BodyRez is a proprietary feature by TC Helicon designed to compensate for the unnatural, thin, or "quacky" sound often produced by piezo under-saddle pickups. It uses filtering and compression to restore a more natural, resonant, and full-bodied acoustic tone.
Q5: Should I use a pedal or the amp’s built-in effects?
A5: For simplicity and portability, the amp's built-in effects (reverb, delay) are excellent. However, a dedicated external pedal will often offer greater control, higher quality, and more specialised effects. The choice depends on prioritizing convenience versus sound customisation.
